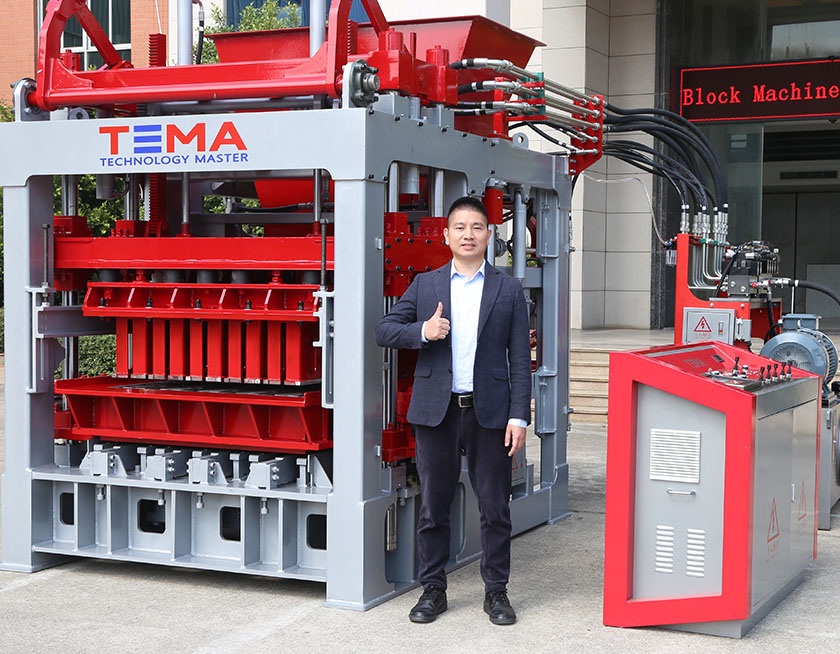

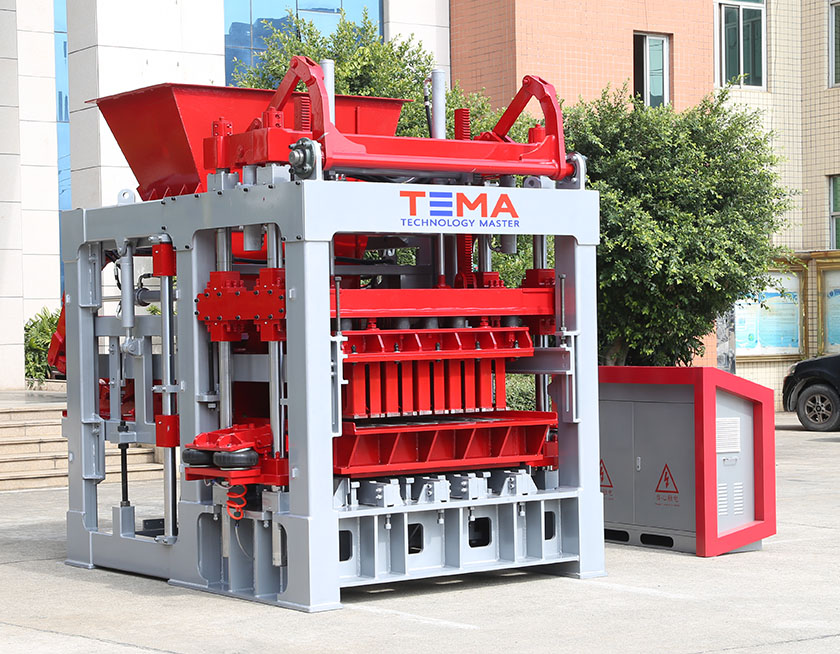

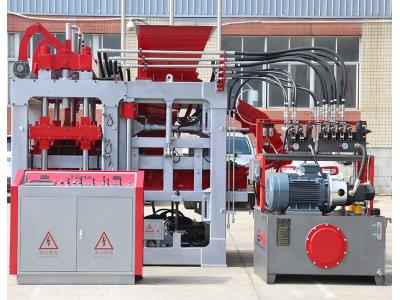

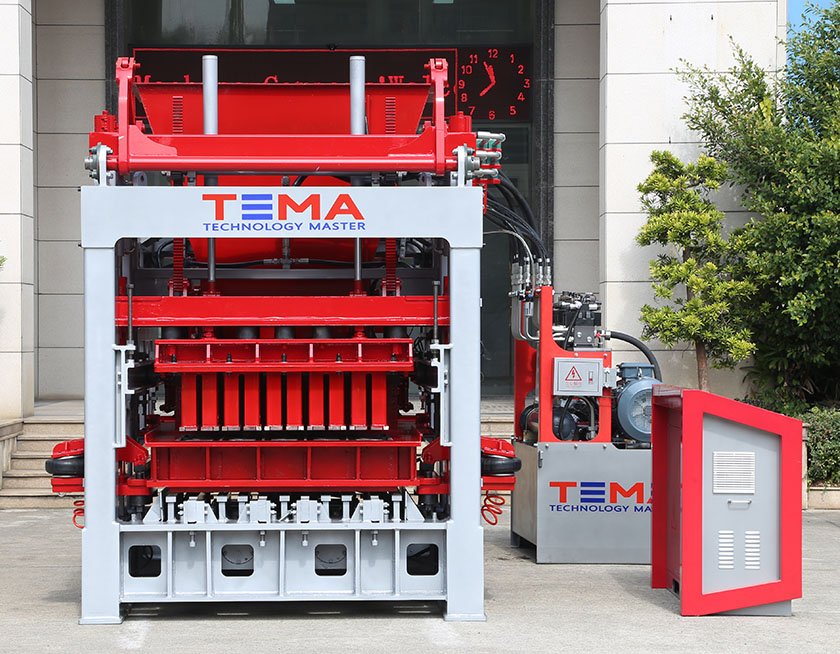

The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
TM9000 Strong Vibration Block Machine for Paving Brick Manufacturing
The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks.
Paving Brick Machine Product Features
Robust Structure: 200*200mm German standard square tube and 4 pieces of Φ90mm solid guide-columns ensure maximum stability.
Advanced Feeding: Swing arm designed feeder car, powered by Siemens motor with frequency inverter for precise filling.
Premium Hydraulics: Japanese Yuken hydraulic system with dual proportional valves for powerful and efficient operation.
Reliable PLC Control: German Siemens PLC fully automatic control system provides stable, time-proven performance.
Powerful Vibration: 2 x 12.8kw servo-driven motors guarantee high-density concrete product molding.
Online Remote Service: Smart system for fast troubleshooting, ensuring zero-downtime production.
Technical Parameters
| TM9000 Specifications | |
|---|---|
| Pallet Size: 1400×700×35 mm | Vibration Force: 2×12.8kw (Servo-driven Controlled) / 120-135 KN |
| Forming Area: 1350×650 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm, able to reach 500mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 30kw (Japanese Yuken proportional valves) |
| Machine Gross Weight: 15 Ton | Power Consumption: 65.35 kW |
Automatic Block Machine Production Capacity (8-10 hours)
| Product Type | Size (mm) | Pieces/Cycle | Production / 8-10 hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 9 | 11,000 - 14,000 |
| Hollow Block | 400×150×200 | 12 | 14,000 - 18,000 |
| Rectangular Paver | 200×100×60 | 36 | 36,000 - 54,000 |
| Zigzag Paver | 225×112.5×60 | 30 | 30,000 - 45,000 |
Applications
By simply replacing the molds, the TM9000 machine serves as a multi-purpose manufacturing equipment for various concrete blocks:
Wall Materials: Standard hollow blocks, solid bricks, retaining wall block and porous bricks for building construction.
Road & Landscaping: pavers, paving bricks, paving blocks, zigzag pavers, interlocking bricks, and grass pavers.
Infrastructure: Heavy-duty curbstones, road edge stones, and water conservancy protective blocks.
Frequently Asked Questions
Q
What kind of products can the TM9000 concrete block machine produce?
A
The TM9000 is a versatile concrete paving brick making machine. By changing the molds, it can efficiently produce paving bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
Q
What is the daily output for standard hollow blocks?
A
For standard 400x200x200mm hollow blocks, this automatic paving brick machine yields about 11,000 to 14,000 pieces per 8-10 hour shift, making it an excellent investment for medium to large-scale mass production.
Q
Can this paver making machine use fly ash or industrial waste?
A
Yes. Our TM9000 Paving brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
