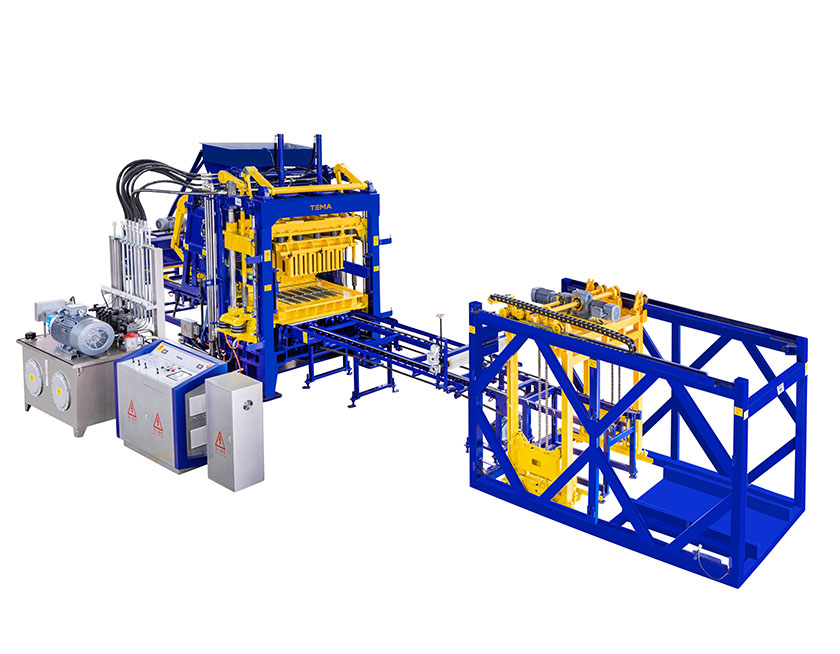

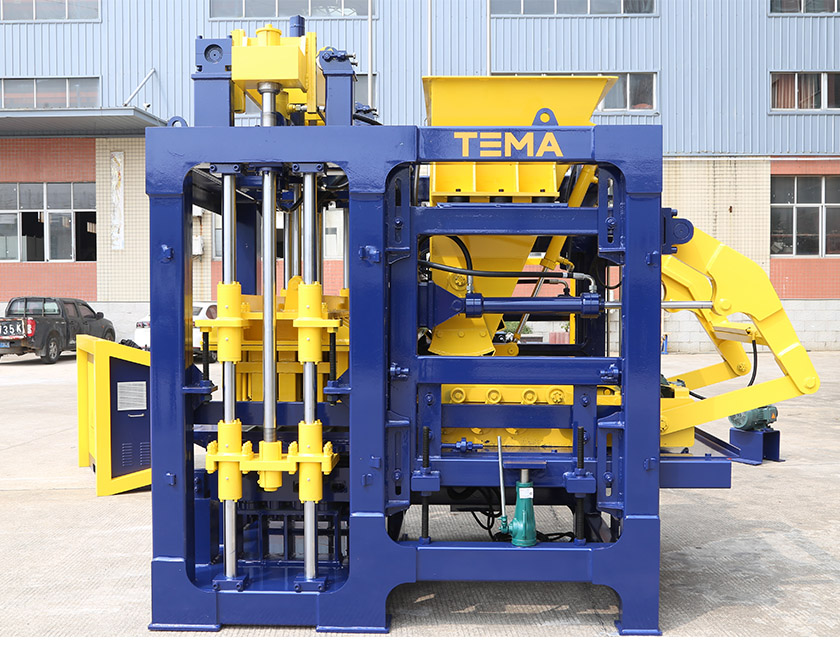

The TM5000 is a highly efficient and economical low cost automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Economical low cost block machine for curbstone production
The TM5000 is a highly efficient and economical low cost automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
High-Production Powerhouse: Delivers a significantly higher output of blocks per hour, designed to meet the demands of large construction projects or distributors.
Heavy-Duty Components: All core systems—hydraulic, vibration, and structural—are built to a larger scale and higher standard for industrial-grade performance.
Optimized for Plant Integration: Ideal as the central unit in a fully automated production line with robotic pallet handling and conveying systems.
Low Maintenance Design: Features easy-access points for servicing and uses industrial-standard, widely available parts to minimize maintenance time and cost.
Robust Vibration Mechanism: Incorporates a high-power, durable vibration system capable of handling large mold areas and ensuring thorough compaction of material.
TM4000 Economical Concrete Block and Paver Making Machine
The TM4000 is an economical and highly efficient machine specifically designed for the production of high-quality curbstones, paver blocks, hollow blocks, and other concrete products.
Product Features
Robust Structure: 150*150mm German standard square tube and 4 pieces of Φ70mm solid guide-columns ensure maximum stability.
Advanced Feeding: Swing arm designed feeder car, powered by Siemens motor with frequency inverter for precise filling.
Premium Hydraulics: Japanese Yuken hydraulic system with dual proportional valves for powerful and efficient operation.
Reliable PLC Control: German Siemens PLC fully automatic control system provides stable, time-proven performance.
Powerful Vibration: Two 9kw frequency inverter-controlled motors guarantee high-density concrete product molding.
Online Remote Service: Smart system for fast troubleshooting, ensuring zero-downtime production.
TEMA block machine Technical Parameters
| TM4000 Specifications | |
|---|---|
| Pallet Size: 1100×580×30 mm | Vibration Force: 2×9kw (Frequency Inverter Controlled) / 80-90 KN |
| Forming Area: 1050×520 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 18.5kw (Japanese Yuken valves) |
| Machine Gross Weight: 7.5 Ton | Power Consumption: 38.15 kW |
Production Capacity (8-10 hours)
| Product Type | Size (mm) | Pieces/Cycle | Production / 8-10 hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 5 | 6,000 - 7,500 |
| Hollow Block | 400×150×200 | 6 | 7,000 - 9,000 |
| Rectangular Paver | 200×100×60 | 20 | 20,000 - 30,000 |
| Zigzag Paver | 225×112.5×60 | 16 | 16,000 - 24,000 |
Applications
By simply replacing the molds, the TM5000 machine serves as a multi-purpose manufacturing equipment for various concrete blocks:
Wall Materials: Standard hollow blocks, solid cement bricks, and porous bricks for building construction.
Road & Landscaping: Rectangular pavers, zigzag pavers, interlocking bricks, and grass pavers.
Infrastructure: Heavy-duty curbstones, road edge stones, and water conservancy protective blocks.
Frequently Asked Questions
Q
What kind of products can the TM5000 concrete block machine produce?
A
The TM5000 is a versatile concrete block and paver making machine. By changing the molds, it can efficiently produce hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
Q
What is the daily output for standard hollow blocks?
A
For standard 400x200x200mm hollow blocks, this automatic cement brick machine yields about 6,000 to 7,500 pieces per 8-10 hour shift, making it an excellent investment for medium to large-scale mass production.
Q
Can this paver making machine use fly ash or industrial waste?
A
Yes. Our brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
