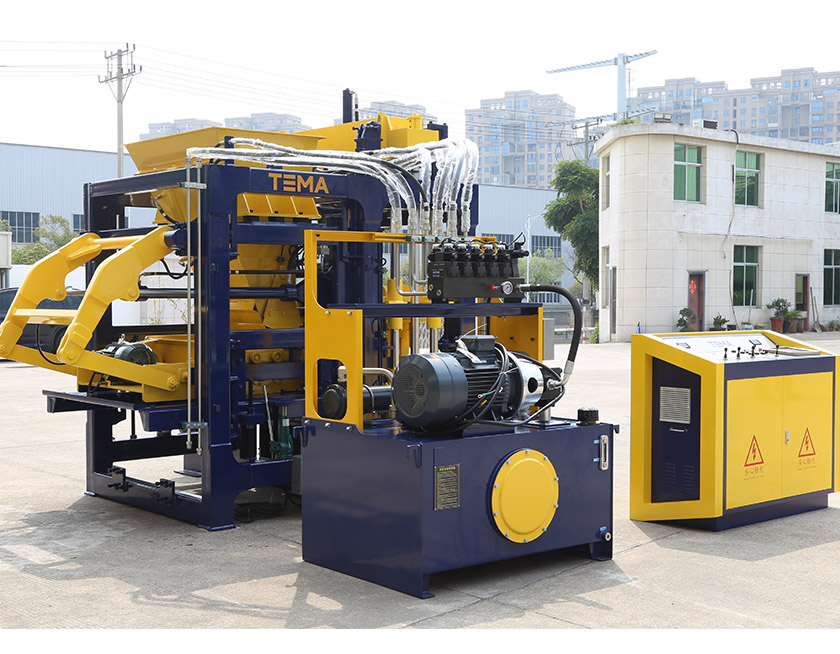

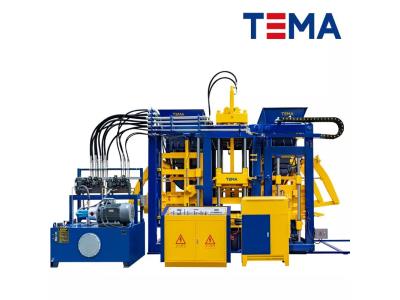

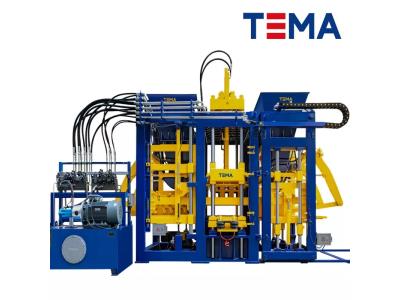

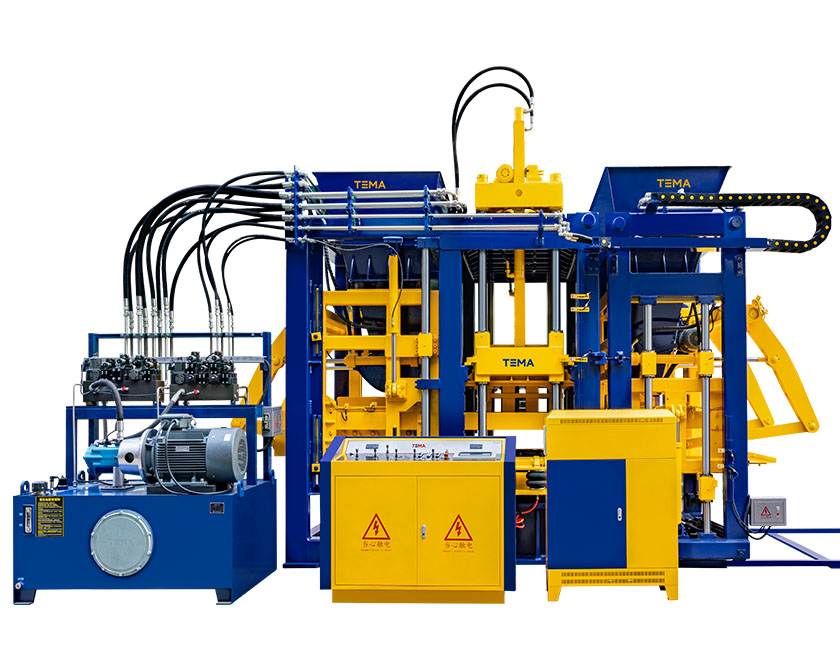

TEMA Automatic hollow block making machine -Servo-Vibration Cement Brick Machine

TM12000 State-of-The-Art German Technology Concrete Block Machine

TM12000 is a state-of-the-art concrete block machine, delivering exceptional efficiency and precision. It has pallet sizes of 1200 ¡Á 1150mm or 1400 ¡Á 950mm which can maximum produce 18,000 pieces of 400¡Á200¡Á200mm hollow blocks or 1,200 square meter paver stone in 8 working hours.

•

• TM12000 State-of-The-Art German Technology Concrete Block Machine Technical Features:

• 1. Robust machine frame with 200¡Á200¡Á10mm German standard square tube and 4 pieces of ¦µ90mm solid guide-columns for stability and durability of machine.

• 2. Super-fast Swing arm designed feeder car, powered by 7.5kW motor and speed controlled by frequency inverter, which makes the molding filling very stable, efficient and high precision.

• 3. Japanese Yuken proportional hydraulic valves are used to ensures the hydraulic system operates smoothly and efficiently and guarantee the powerful machine speed.

• 4. Powered by German Siemens PLC fully automatic control system, which has been time-proven to ensure stable and consistent machine performance.

• 5. Four 11kw Or Two 16.5kw Servo drives-controlled Italian Physis servo motors (cardan shafts connection), ensure the best possible synchronization and vibration performance.

• 6. Online remote service system, enables us to provide our customers with fast after sales support, reducing downtime and troubleshoot any issues that may arise, ensuring that our customers can continue to produce high-quality concrete products without interruption.

•

• TM12000 Technical Parameters
  1200 ¡Á 1150 ¡Á 35mm or 1400 ¡Á 950 ¡Á 35mm	Vibration Force: 4¡Á11kw or 2¡Á16.5kw (Servo drives-controlled Italian Physis servo motors), Dynamic and static structure vibration table
  Control System: Siemens PLC Control	Feeder Car Design: Double swing arms driven, Powered by Siemens motor
  Products Height:  50-200£¨mm£© (Possible to heighten to 500mm)	Hydraulic System: 30kw Siemens motor, Italian VTOZ hydraulic valves and American Albert oil pump
  Cycle Time: 15-20£¨S£©	Power Consumption: 88 kW
  Machine Gross Weight: 16 Ton	Vibration Force: 135-160£¨KN£©
  TM12000 Production Capacity in 8-10 hours
  400¡Á200¡Á200mm Hollow Block	12 Pieces/Cycle	14,000-18,000 Pieces/8-10hours
  400¡Á150¡Á200mm Hollow Block	16 Pieces/Cycle	19,000-24,000 Pieces /8-10hours
  200¡Á100¡Á60mm Rectangular Paver	44 Pieces/Cycle	44,000-66,000 Pieces/8-10hours
  225¡Á112.5¡Á60mm Zigzag Paver	35 Pieces/Cycle	35,000-52,500 Pieces/8-10hours

•

•
