Cement Brick Palletizer - TEMA Automatic Automatic Brick Cuber for Concrete Block Palletiz
Send Inquiry- Product Details
- Company Profile

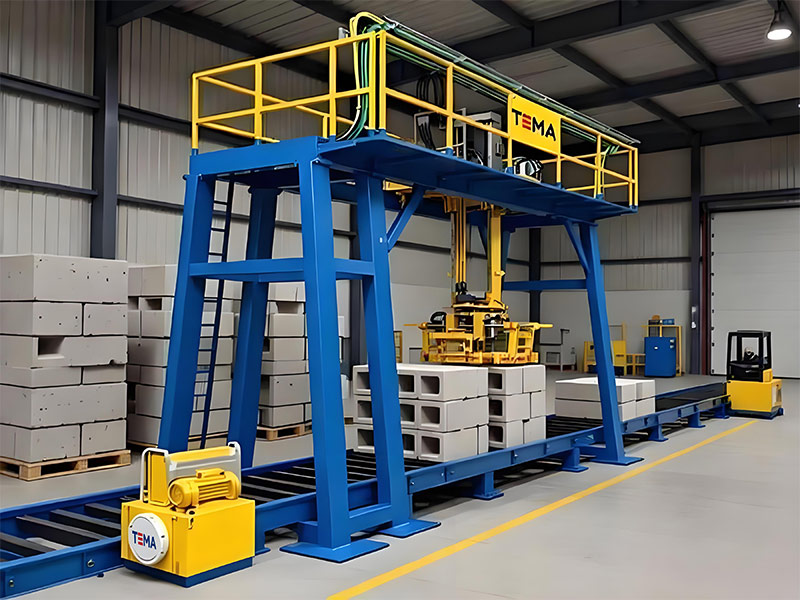

The TEMA Cement Brick Palletizer is Automatic Brick Stacking Machine (Hollow Block Palletizer) is a multifunctional solution suitable for the palletizing of various concrete products, including hollow blocks, paving stones, solid bricks, and curb stones.

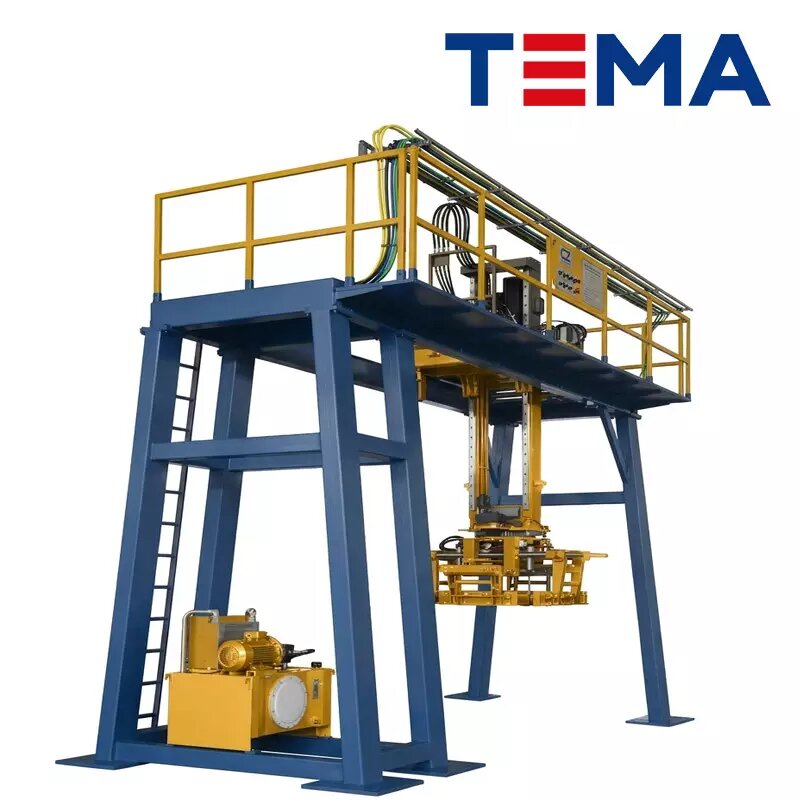

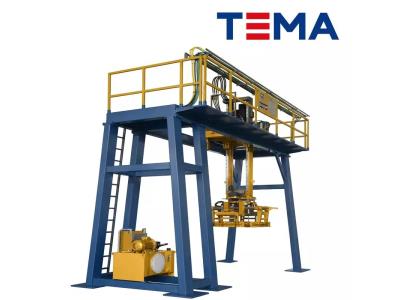

TEMA High Level Servo Cuber for Concrete Block Palletizing
Designed specifically for concrete block and paver palletizing, TEMA’s latest servo-driven cuber brings industrial automation to a new level.
1. Full Servo Control for High Precision & Fast speed
2. Anti-Shake Design with Specialized Teeth Row & Moving Rails
3. Automatic Block Grouping for Easy Cross-Palletizing
TEMA High Level Servo Cuber for Concrete Block Palletizing Machine
Designed specifically for concrete block and paver palletizing, TEMA’s latest servo-driven cuber brings industrial automation to a new level.
| Parameter | Specification |
|---|---|
| Overall Dimensions (L×W×H) | 6095 × 2550 × 6510 mm |
| Lifting Drive | 17 kW INOVANCE servo motor |
| Traveling Drive | 4.4 kW INOVANCE servo motor |
| Rotating Drive | 1.1 kW INOVANCE servo motor |
| Brick Clamp Cylinder | High-performance cylinder, 50 × 550 mm |
| Maximum Cuber / Palletizing Size | 1200 × 1200 mm |
| Structure Type | Bridge-type gantry (stable, reliable, efficient, no product damage) |
1. Full Servo Control for High Precision & Fast speed
The TEMA High Level Cuber eliminates the limitations of hydraulic systems. The lifting system, movement system, and rotation system are all completely servo motor controlled. This means every axis of motion is independently driven by a high-performance servo motor, offering:
Pinpoint accuracy: Each block layer is positioned exactly where it needs to be.
High-speed operation: Faster cycle times without sacrificing quality.
Programmable flexibility: Instantly change patterns and layer heights via the HMI.
With zero hydraulic drift and instant response, your palletizing line becomes faster, smarter, and more consistent.
2. Anti-Shake Design with Specialized Teeth Row & Moving Rails
A common challenge in high-speed cubing is mechanical instability—vibration that leads to misaligned layers or damaged products. TEMA engineers solved this with a robust mechanical architecture.
The cuber features a specially designed teeth row combined with moving rails for perfect synchronization. This dual-action system ensures that all moving parts work in unison, eliminating lag or uneven motion. The result is:
Rock-solid stability even at maximum speed.
No shaking or wobbling during layer pickup or placement.
Extended component life due to reduced mechanical stress.
Your blocks stay intact, and your production line stays smooth.
3. Automatic Block Grouping for Easy Cross-Palletizing
Square, stable pallets are the goal of any block plant, especially when handling pavers or irregular shapes. The TEMA cuber comes with an automatic block grouping system that intelligently arranges concrete blocks or pavers into a compact square shape.
This smart grouping feature offers two major benefits:
Ready for cross-palletizing: The squared layers provide a perfect foundation for the next layer to be rotated and placed crosswise, maximizing pallet stability.
Reduced manual intervention: No need for operators to rearrange products; the system handles grouping automatically.
