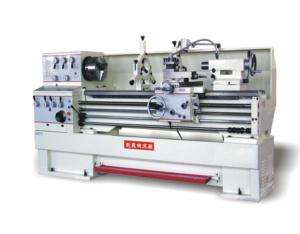

GH1840/1860 Engine Lathe
Send Inquiry- Product Details
- Company Profile
GH1840/1860 Enigine Lathe 80mm spindle bore
| Model | GH-1840 | GH-1840 | GH-2060 | ||||
| Max. Swing over bed | mm | Φ450（18〞） | Φ500（20〞） | ||||
| Max. Swing over cross slide | mm | Φ285（11.2〞） | Φ330（13〞） | ||||
| Max. Swing over gap | mm | Φ696（27.4〞） | Φ746（29.4〞） | ||||
| Max. Distance between centers | mm | 1000(40〞) | 1500（60〞） | ||||
| Bed width | mm | 340 | |||||
| Taper of spindle bore | MT#6 | ||||||
| Spindle bore | mm | Φ80（3-1/8〞） | |||||
| Steps of spindle speeds | 12steps | ||||||
| Range of spindle speeds | r/min | 40-1600rpm | |||||
| Spindle nose | D-8 | ||||||
| Diameter of lead screw | mm | Φ36(1.41〞) | |||||
| Pitch thread of lead screw | mm | 6(4T.P.I) | |||||
| Max. cross slide travel | mm | 220(9〞) | |||||
| Max. compound slide travel | mm | 120（4-3/4〞） | |||||
| Travel of tailstock quill | mm | 130(5〞) | |||||
| Diameter of tailstock quill | mm | Φ70（2-3/4） | |||||
| Taper of tailstock quill | MT#4 | ||||||
| Main motor power | Kw | 5.5(7-1/2HP) | |||||
| Overall Size of lathe(L x W x H) | mm | 2420 x 1140 x 1700 | 2920 x 1140 x 1700 | 2920 x 1140 x 1700 | |||
| Net Weight | Kg | 2200 | 2400 | 2400 | |||
| Gross Weight | Kg | 2400 | 2600 | 2600 | |||
