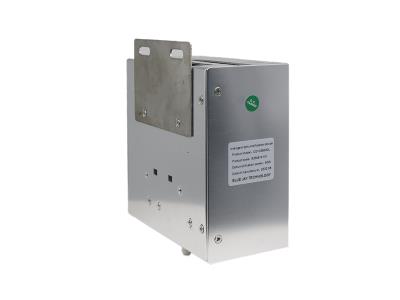

DH5-80 350mL Aluminum Alloy Cabinet Dehumidifier
Send Inquiry- Product Details
- Company Profile
The DH5-80 aluminum alloy cabinet dehumidifier reduces the relative humidity and absolute humidity by reducing the water content in the air. It changes the passive prevention of condensation to active guidance of condensation, effectively preventing safety hazards such as aging of equipment in the cabinet, reduction of insulation strength, breakdown of secondary terminals, mildew of materials, and corrosion of aluminum alloy structural parts, ensuring Safe operation of the power grid. The shell material of the DH5-80 cabinet dehumidifier is Aluminum Alloy, which is corrosion resistant. This cabinet dehumidifier is highly dehumidifying efficient so it is the ideal solution for cabinets.
DH5-80 series Peltier condenser using semiconductor technology, in a certain place of the cabinet, to lead controlled condensation, making the interior environment humidity fall to a safe value. It is a refrigerant-free cooling device, can be used in switchgear, electrical cabinets, exchange control cabinets, outdoor terminal boxes, etc.
It is designed ultra-small install size, high efficiency, energy-saving, do not need extra heater and fan wiring. And comes with the data acquisition module for remote monitoring. It‘s an efficient and reliable device to replace the old thermostat and heater/fan combination.
Feature
Aluminum Alloy shell: strong thermal conductivity & corrosion resistance
RS485 communication, heater(100-300V), alarm, optionally two of them
1 digital LED Screen, real-time display of temperature and humidity
Wall Mounts or DIN rail installation on the internal panel
The automatic/manual dehumidification function is optional
Stronger dehumidifying capacity 350mL/Day
small size: 138*150*70mm
One Fan with CE
Max power 75W
Specification
| Data Name | Technical Data | |
| Working power | Power supply | 85V~265VAC/DC 50Hz |
| Peltier rated power(1) | 75W | |
| Air volume flow | 100m3/h | |
| Dehumidifying capacity | 350ml/Day @35°C,90%RH | |
| Measurement and ability | Humidity monitor range | 20%RH~98%RH |
| Sensor accuracy | ±5%RH | |
| Dehumidify start threshold | 45%RH~98%RH, Default 65%RH | |
| Environment temperature | 5~60°C | |
| Temperature monitor range | -40~80°C | |
| Sensor accuracy | ±1.0°C | |
| Heater start threshold | 1~55°C, Default 5°C | |
| Heater power | 50~500W optional | |
| Other | Physical dimension | 138*150*70 |
| Screen | 1 digital LED | |
| Standards | IEC60255-22-1 | |
| Communication | RS485, modbus-RTU (Optional) | |
| Notes: 1. The rated power is related to the cabinet’s inner volume and airtightness, and the general reference value is: 0.5cubic meter cabinet choose 15w 1.0cubic meter cabinet choose 30w 1.5cubic meter cabinet choose 40w 2.0cubic meter cabinet choose 60w Cabinet volume is calculated according to the physical dimension (Length*Width*Height).2. The DH5-80 cabinet dehumidifier uses an external sensor. Please contact our sales team before ordering.3. The cabinet dehumidifier provides passive NO contact for external heater connection, capacity is AC250V5A. You can free to order heaters or purchase with the DN series. | ||
