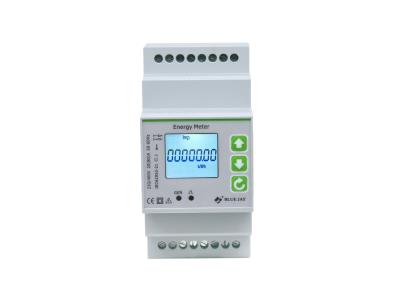

19D-23C Din rail mounting Single Phase home power electricity kWh meter single phase
19D-23C meter is suit for for single-phase measurement, use scenarios such as residential, public facilities, and industrial use. 19D-23C can measure and display various important power parameters, optional communication ports support remote reading and monitoring. Bi-direction metering makes 19D-23C is an excellent choice for solar energy industry.
features:
-. Detect active/reactive energy, power, frequency, Max demand, voltage, Current and other important power parameters in one screen
-. Provide energy import and export measurement (IMP & EXP)
-. High light white backlit LCD screen
-. Energy pulse output
-. RS485 Modbus communication (optional)
-. Standard 35mm din rail mounting
-. Maximum 100A current access
-. Accuracy: Class 1.0s
Basic Specification:
Measurement & Display | |
Voltage | Rated 230V RMS value, Accuracy 0.5%, |
Current | Rated 10A, Max 100A, Start amp 0.04A, RMS value. Accuracy 0.5%; Overload 30times In in 0.01sec |
Frequency | 50/60Hz, Accuracy ±0.01Hz |
Display | LCD with white backlit |
Maximum display value | 9999999MkWh |
AUX Power | 85-275V AC, <2W/10VA |
Output | |
Digital port | RS-485 MODBUS-RTU |
Pulse port | 1600imp/kWh |
Other | |
Working environment | -25~55°C Altitude ≤2500m, 0~95%RH, non-condensing, non-corrosive gas |
Storage environment | -40~70C |
Voltage tolerance | 2KV 1min |
Shock voltage | 6KV-1.2uS waveform |
Insulation | Input, output, power supply to Shell >5MΩ |

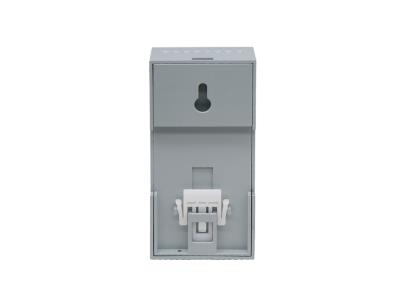

Install of meter:
Dimensions (L x W x H) | Din-rail | Notes |
99x36x63 (mm) | 35mm |
