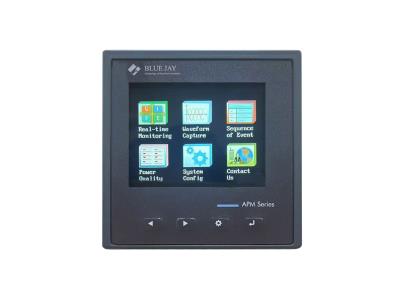

APM-96Q Multifunction Meter With RS485 by Blue Jay is a premium panel mounting power analyzer with advanced features and precise measurement accuracy. with a user-friendly interface and four direct access keys, it is easy to use for 3P3W or 3P4W low voltage (LV) installations. APM-96Q multi-function power meter also has a digital RS485 communication port that uses the Modbus Protocol to transmit monitoring data. APM-96Q multi-function power meter gathers data for intelligent power distribution or plant automation. It measures harmonics and records multi-tariff data for accounting purposes. It monitors up to 127th harmonic for a clear understanding of electrical grid quality.

APM-96Q Multi-Function Power Analyzer is a high-end multifunction power meter. It is the ideal choice for monitoring and measuring power systems. Using a dot matrix LCD screen can more easily display more electrical parameters on the same screen.

It can measure all of the power parameters in the power grid:

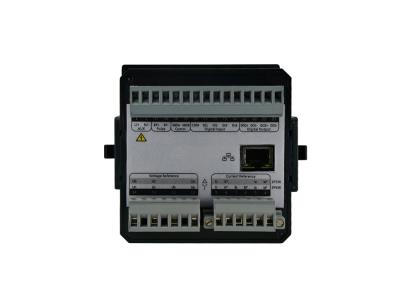

With optional expansion modules, it can also transmit the parameter into 2*Relay output (2DO) and 6*Switch input (6DI), 3*Analog output (3AO). For transformers, generators, capacitor banks, and motors of the distributed detection, automatic control system, an online monitoring display. APM-96Q provides max 100 lists of event logging, real-time saving DI/DO acted events, also an optional logging function for event tracing.

It can replace the traditional analog or many digital measurement instruments (such as an ammeter, voltmeter, power meter, power factor meter, frequency meter, etc.)  The integrated advanced electrical parameter and logging function can replace the general power recorder to perform real-time online monitoring, with the advantages of improving system reliability, making the on-site wiring convenient, and reducing system cost.

With a serial port, APM-96Q can connect with the PC and use Modbus to set programming and read the data. Based on these power meters, you can simply set up a monitoring system with the IPC and central software.

Features:

¡¤Measurement accuracy class 0.2

¡¤Current measuring .../5 or .../1 A

¡¤Clear and large matrix LCD screen

¡¤Universal series power supply (85-265VAC/DC)

¡¤ITF Technology: galvanic insulation protection inputs, outputs

¡¤Record and read multi-tariff ratio, up to 3 months

¡¤A variety of advanced electrical parameters can display the status of the power grid on the spot (Max demand/unbalance/crest factor/K factor...)

¡¤Provide 5 virtual alarm triggers

¡¤Provide max 100 lists SOE record

¡¤1KHz Waveform Snapshot, capture length 1 second of voltage, current power flicker/drop for event tracing.

¡¤With RS-485 Modbus/RTU Communications

¡¤With 2-channel Pulse Output (PO) for active energy and reactive energy counting

¡¤Optional 3-channel Analog Output (AO)

¡¤Optional 6-channel Digital Input (DI) and 2-channel Digital Output (DO)

¡¤Optional 128MB memory for data logger
