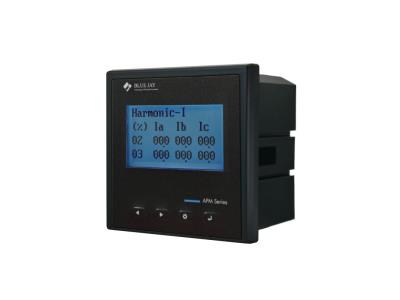

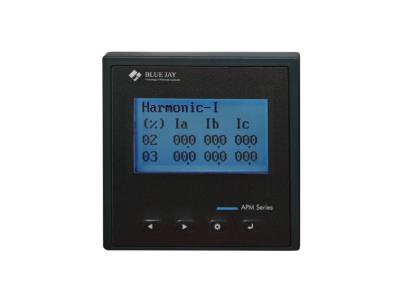

APM-96J 3 Phase Multifunction Meter is a new smart and powerful Power Monitoring device, compared to our APM-96Y multifunction power meter. It has higher precision and some advanced measurement parameters such as the 63rd individual harmonic. With four direct access keys and a backlit LCD display, the APM-96J digital multifunction meter shows all the parameters clearly. If you are looking for multifunctional meters with a time of use function and THD measurement, it is the ideal choice for measuring THD in power distribution systems. Measurement: U, I, P, Q, S, PF, KWH, THD Communication: Built-in RS485(Modbus-RTU),& Profibus, Ethernet (Modbus TCP) option Wiring: 1-phase 2 wire, 2-phase 3-wire, 3-phase 3-wire & 3-phase 4wire Accuracy: class 0.2 Per IEC61557-12 Category: Multifunction Power Meter
APM-96J Multi-Function Power Monitor is a high-end multifunction power meter. It is the ideal choice for monitoring and measuring of power systems.
It can measure all of the power parameters in a power grid:
Current, Voltage, Frequency, Active power, Reactive power, | Apparent power, Energy (Active/Reactive), Power factor, Current harmonics 2~31 times, Voltage harmonics 2~31 times, | Voltage and current THD%, Harmonics factor, Voltage crest factor, Current K-factor, Multi-tariff ratio. |
With optional expansion modules, it can also transmit the parameter into 2*Relay output (2DO) and 4*Switch input (4DI), 2*Analog output (2AO). For transformers, generators, capacitor banks and motors of the distributed detection, automatic control system, online monitoring display.APM-96J provides max 50 list event logging, real-time saving DI/DO acted events.
It can replace the traditional analog or many digital measurement instruments (such as ammeter, voltmeter, power meter, power factor meter, frequency meter, etc.) with the advantages of improving system reliability, making the on-site wiring convenient, and reducing system cost.
With a serial port, APM-96J can connect with a PC and use Modbus to set programming and read the data. Based on these power meters, you can simply set up a monitoring system with the IPC and central software.
Features
·Measurement accuracy class 0.2
·Current measuring .../5 or .../1 A
·Backlit LCD
·Universal series power supply (85-265VAC/DC)
·ITF Technology: galvanic insulation protection inputs, outputs
·Record and read multi-tariff ratio, up to 3 months
·A variety of advanced electrical parameters can display the status of the power grid on the spot (Max demand/unbalance/crest factor/K factor...)
·Provide max 50 lists SOE record function
·With RS-485 Modbus/RTU Communications
·With 2-channel Pulse Output (PO) for active energy & reactive energy counting
·Optional 2-channel Analog Output (AO)
·Optional 4-channel Digital Input (DI) and 2-channel Digital Output (DO)
