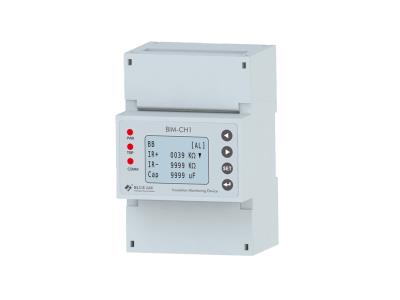

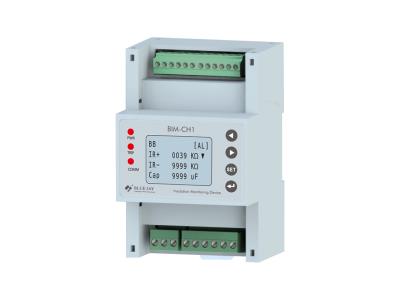

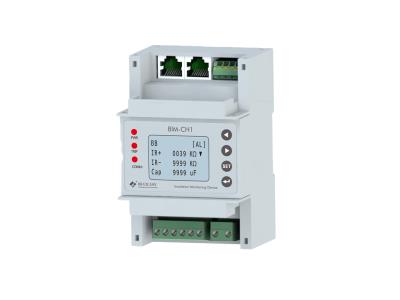

The BIM-CH1 insulation monitoring device monitors the insulation resistance of DC systems (IT systems) devices up to DC 0- 1000V. BIM-CH1 has insulation monitoring start and stop functions. After insulation monitoring is turned on, it can real-time monitor the insulation resistance of the positive and negative poles to the ground. The monitoring results are not affected by DC voltage fluctuations and the symmetry of the insulation resistance of the positive and negative poles.

BIM-CH1 is equipped with RS485 /Modbus communication, which can remotely monitor the system status. BIM-CH1 uses two working principles for monitoring: the unbalanced bridge method to monitor the insulation resistance value to the ground, and the balanced bridge method to monitor the voltage value to the ground. Optional temperature sensors can be used for system temperature measurement.

Feature

1. Adaptive capacitance to ground;

2. Widely insulation monitoring range (100V~1000VDC);

3. Monitoring the insulation resistance for unearthed DC systems: 0K¦¸~10M¦¸;

4. Two working modes: balanced bridge method, used to monitor the voltage value to the ground / unbalanced bridge method, used to monitor the insulation resistance to the ground;

5. Measured value indication via a multi-functional LCD display;

6. Automatic device self-test with connection monitoring;

7. DC voltage reverse connection alarm function;

8. RS485 communication, MODBUS RTU protocol;

9. Selectable NC or NO relay operation;

10. Password protection to prevent unauthorized parameter changes;

11. Optional temperature sensor for system temperature measurement.
