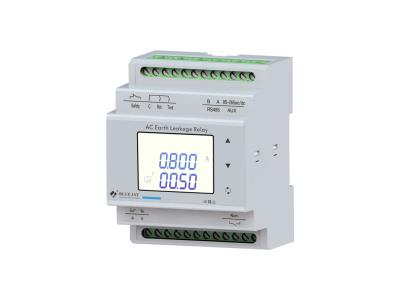

The ELR Earth Leakage Relay enhances electrical safety by continuously monitoring leakage current with an advanced residual current transformer. When leakage current exceeds the preset threshold, it instantly triggers an alarm for early fault detection. Featuring an alarm hold function, it retains the alarm signal until reset, simplifying fault diagnosis. Ideal for preventing equipment damage, reducing downtime, and ensuring personnel safety, the ELR Series provides reliable and efficient protection for your power system.

Feature

1. Digital measured value display via LCD display;

2. Current transformer connection monitoring;

3. Internal/external test/reset button;

4. Adjustable trip levels and time delay;

5. Standard 35mm DIN rail mounting;

6. 5mA-3A adjustable response values

Application

1. Smart grid system;

2. Medium and low voltage systems;

3. Commercial and residential buildings;

4. Utilities and power distribution systems;

5. Motor control panels and switchboards;

6. DC system leakage current measurement;

7. Industrial control system (PLC, SCADA, DCS).

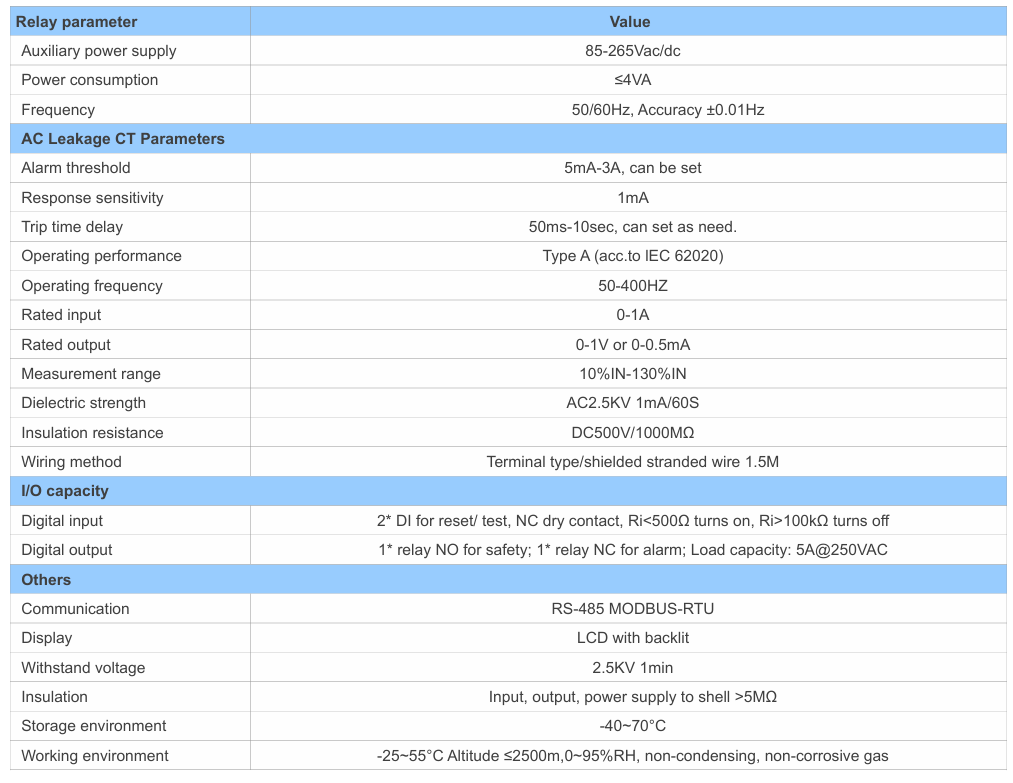

Specification
