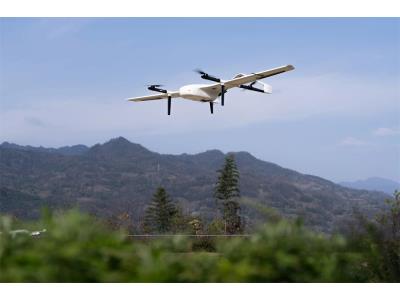

The CW-20E packs flagship intelligence into a foldable, field-ready VTOL. With 180 minutes of flight time and a 5 kg payload, it turns single sorties into full-day workhorses. The all-new digital avionics and upgraded active obstacle avoidance deliver autonomous safety from takeoff to landing.

With continuous technical innovation, the CW?20E delivers real?world benefits: longer missions with less downtime, fold?and?go deployment, active safety, and onboard intelligence that turns raw data into decisions.

3-hr Long Endurance :180 minutes of flight time with a standard 2kg surveillance payload. Cover more than 150km of linear assets in a single mission ¡ª no battery swaps, no second flights.

5 kg High Payload Capacity :Carry up to 5kg of mission equipment. Swap payloads in minutes ¡ª from EO/IR gimbals and mapping cameras to LiDAR and multispectral sensors.

1?Minute Tool?Free Foldable :Fully collapsible design with no tools required. Unfold and deploy in under 1 minute ¡ª easily fits into any vehicle trunk for rapid field response.

All?Digital Avionics :Full?digital bus with dual IMU and dual GNSS redundancy. Each node features automatic fault recovery and control reallocation ¡ª critical systems never fail silently.

100 TOPS Onboard AI Computing :100 TOPS AI module runs real?time computer vision and deep learning models. Identify, track, and react to targets mid?flight ¡ª not after landing.

Active Obstacle Avoidance :Forward mmWave radar (240m range) + downward radar (240m) + binocular vision (50m). The aircraft dynamically reroutes or climbs to avoid obstacles, ensuring safety from takeoff to landing.

Fully Autonomous Flight :One?button takeoff and landing, automated pre?flight checks, in?air compass calibration, and terrain following. Focus on your mission, not the sticks.
