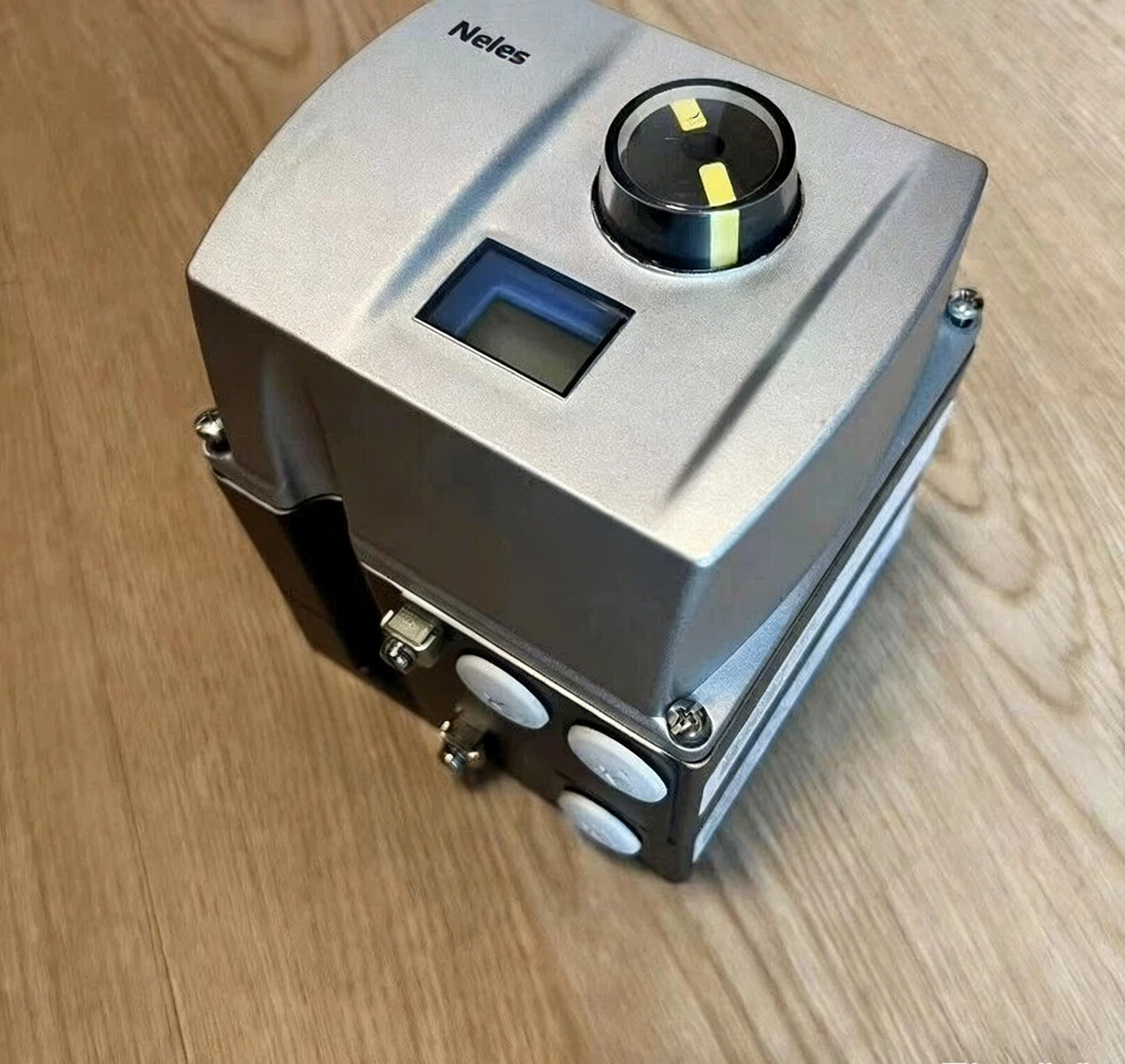

VALMET ND9306HX/I09 Smart Valve Positioner

The VALMET ND9306HX/I09 Smart Valve Positioner is an intelligent electro-pneumatic valve controller developed to deliver accurate valve positioning, improved process control, and enhanced equipment reliability. As part of the VALMET ND9000 Series, it combines advanced microprocessor technology with digital closed-loop control to optimize the performance of pneumatic control valves across a wide range of industrial applications.

Designed for continuous operation in demanding environments, the ND9306HX/I09 provides exceptional positioning accuracy, rapid response time, and integrated diagnostic capabilities. It supports HART communication, enabling seamless integration with Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and Asset Management Systems (AMS) for efficient plant-wide monitoring and maintenance.

Key Features

• Advanced digital closed-loop control technology

• High positioning accuracy for improved process stability

• HART communication protocol support

• Automatic commissioning and self-calibration

• Non-contact position feedback technology

• Intelligent valve performance diagnostics

• Adaptive control algorithm for varying operating conditions

• Low air consumption for improved operating efficiency

• Rugged industrial design with excellent environmental resistance

• Easy installation and configuration

Technical Benefits

The ND9306HX/I09 continuously compares the command signal with the actual valve position and automatically adjusts the pneumatic output pressure to eliminate positioning errors. This closed-loop control significantly reduces hysteresis, dead band, and overshoot while maintaining stable valve performance under changing process conditions.

Its built-in diagnostic functions monitor critical operating parameters, including valve travel, actuator performance, friction levels, air supply condition, and operating cycles. Maintenance personnel can analyze equipment health in real time, allowing predictive maintenance strategies that reduce unexpected shutdowns and maintenance costs.

Communication and Diagnostics

The integrated HART communication interface enables users to:

• Configure operating parameters remotely

• Perform online calibration

• Monitor valve operating status

• Access diagnostic information

• Analyze historical operating data

• Integrate with plant asset management systems

These capabilities simplify commissioning, troubleshooting, and long-term maintenance while improving overall plant efficiency.

Typical Applications

The VALMET ND9306HX/I09 Smart Valve Positioner is widely used in:

• Oil and gas production

• Refineries and petrochemical plants

• Chemical processing facilities

• Power generation plants

• Pulp and paper mills

• Water and wastewater treatment

• Mining and metallurgy

• Pharmaceutical manufacturing

• Food and beverage processing

• General industrial automation

Performance Advantages

Compared with conventional pneumatic positioners, the ND9306HX/I09 offers significant operational improvements:

• Faster valve response for improved process control

• Higher positioning accuracy

• Reduced air consumption

• Enhanced process stability

• Improved valve reliability

• Intelligent online diagnostics

• Lower lifecycle maintenance costs

• Extended valve and actuator service life

• Increased plant productivity and operational safety

Installation and Maintenance

For optimum performance, the positioner should be installed using clean, dry instrument air and properly aligned with the pneumatic actuator. Automatic calibration during commissioning ensures accurate valve travel adjustment with minimal setup time.

Routine maintenance recommendations include:

• Periodic inspection of pneumatic connections

• Monitoring diagnostic data through HART communication

• Checking air supply quality

• Verifying actuator performance

• Replacing wear components during scheduled maintenance

• Performing regular functional testing

Following these maintenance practices helps maximize equipment availability and extend the operational life of the control valve assembly.

Conclusion

The VALMET ND9306HX/I09 Smart Valve Positioner is a reliable and intelligent solution for modern industrial valve automation. By combining advanced digital control, HART communication, adaptive tuning, and comprehensive diagnostics, it delivers superior valve performance, increased process efficiency, and reduced maintenance costs.

Whether installed in new automation projects or used as a replacement in existing systems, the ND9306HX/I09 provides dependable operation, excellent positioning accuracy, and long-term reliability, making it an ideal choice for demanding process control applications worldwide.
