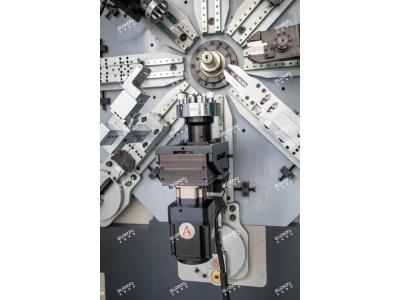

Yonglian Group cnc busbar bending machine
Send Inquiry- Product Details
- Company Profile
Yonglian Group New Energy Copper & Aluminum Busbar Bending Machine is specifically designed for insulated busbars, featuring tooling optimized for plastic-coated layers to ensure no coating damage or springback during bending. Equipped with a full servo-driven system, it supports multi-angle bending (U, Z, L, etc.) with high angular accuracy. It allows 3D drawing import for automatic programming and path simulation, saving setup time and material costs. Custom tooling is available to match different coating thicknesses and hardness levels. With quick changeover and easy operation, it is ideal for flexible, multi-variety production scenarios. Widely used in electric vehicles (battery connectors, PDU), charging piles, energy storage systems (container & residential), PV inverters, high-power frequency converters, and rail transit for conductive busbar processing.
Machine Features：
1.Specially designed for insulated busbars: structure and tooling are optimized for plastic-coated copper/aluminum busbars to prevent insulation damage and rebound.

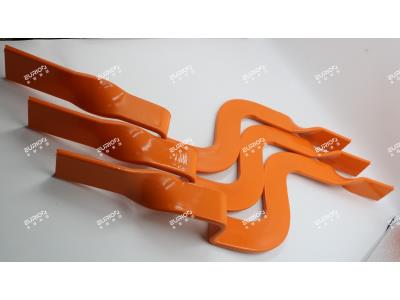

2.Multi-angle bending capability: supports U-shape, Z-shape, L-shape and other complex bends to meet diverse wiring layouts.
3.High level of automation: full-servo drive system ensures stable operation and precise angle control.
4.Supports 3D drawing import: auto-generates bending programs and simulates bending paths to reduce setup time and material cost.
5.Customizable tooling: bending radius and structure can be tailored based on insulation thickness and material hardness.
6.High-efficiency production: easy to operate with fast tool change, suitable for flexible and multi-variety manufacturing.
型号 | EB-40E-6 |
机器加工能力 | 厚Thickness : 2.0mm ~ 6.0mm 宽Width : 13.0mm ~ 40.0mm |
轴数 | 13 |
送线轮组数 | 3Sets |
送线电机功率 | 5.5KW |
转线电机功率 | 4.5KW |
转芯电机功率 | 2.0KW |
手臂电机功率 | 1.8KW×8 |
卷曲电机功率 | 1.2KW |
剪刀电机功率 | 1.0KW |
机器尺寸(长x宽x高) | 2600X1750X2000（mm3） |
机器重量 | 7500kg |
