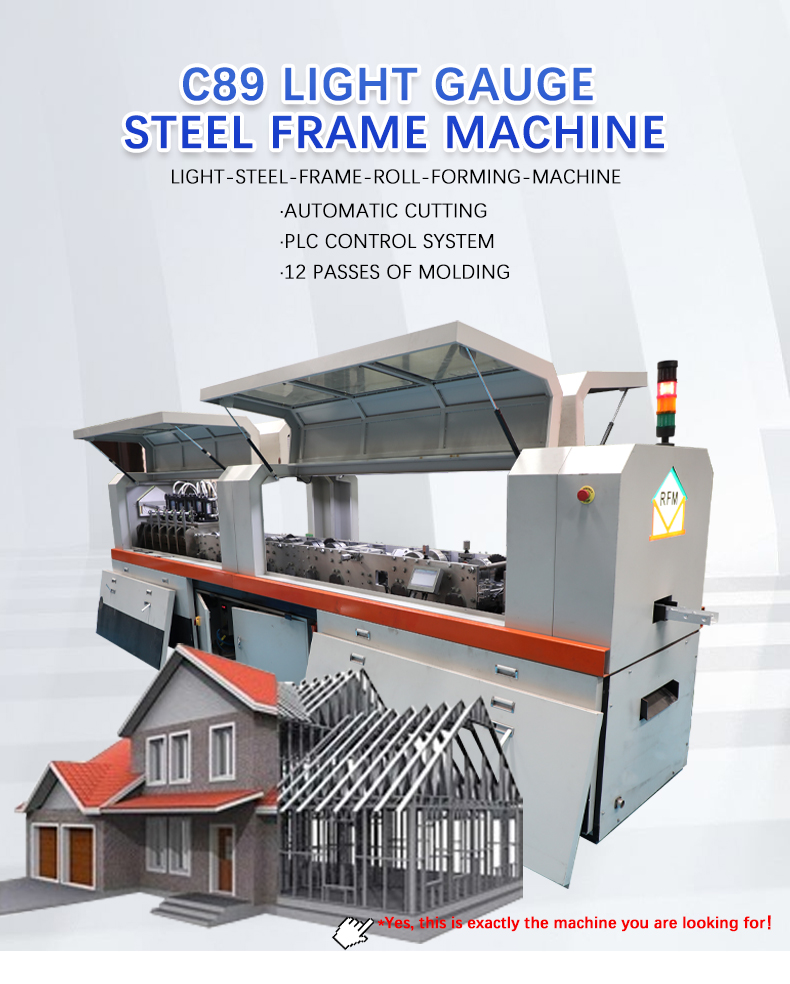

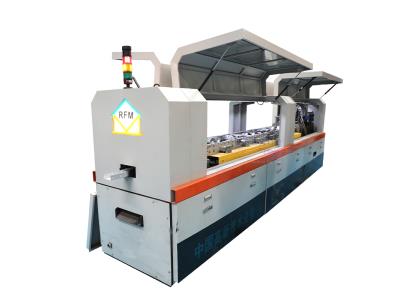

C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House
C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House
C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House
C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House
C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House
C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House

C89/C140/C200 Light Gauge Steel Framing Lgs Roll Forming Machine for Prefab House

Trading Company,Manufacturer

  • Product Details
  • Company Profile

Needs to be customized by the factory, and its structural accessories are relatively light, thin and small.

Stable Light Steel Frame Villa Keel Forming Machine

How to operate the foundation of the "stabilized light steel frame villa keel forming machine"?


1. Does the "stable light steel frame villa keel forming machine" need to lay the foundation?

1. Brick-concrete houses are to lay the foundation at first. The foundation is the foundation of the house. If the foundation is not well done, then due to the unstable foundation, the houses built on this foundation will be prone to various quality and safety problems, so even the "stable light steel frame villa keel forming machine" cannot be ignored. It is a new type of structure, and it needs a good foundation.

2. "Stable light steel frame villa keel forming machine" is a house built with light steel structural accessories, which needs to be customized by the factory, and its structural accessories are relatively light, thin and small. During the construction process, it will reach the bottom of the light steel. The construction of structural attachments will not be carried out directly in the soil. After all, the solidity of the soil cannot be guaranteed. Therefore, the construction of light steel villas requires a fixed foundation to complete the construction of the house. Therefore, the "stable light steel frame" villa keel forming machine" also needs to lay the foundation.

After tamping the backfill, a 250-micron polyethylene plastic film will be used as a moisture-proof layer to lay the structural foundation of the "stable light steel frame villa keel forming machine".


Technical parameters of Stable Light Steel Frame Villa Keel Forming Machine

Size3700*800*1100mm
Weight2800KGS
Main Servo Motor Power5.5KW
Hydraulic Motor Power5.5KW
Forming Steps10+2steps for reshaping
Processing Speed25-30m/min
Voltage380V/50HZ/3PH
Lip of C Profile10mm
Tolerence Of Forming0.75mm
Forming Thickness0.7-1.2mm
Height38mm
Width89mm
