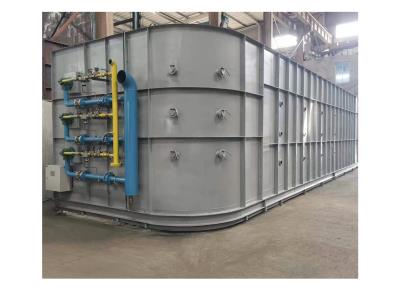

Hot-dip Galvanizing Furnace and Galvanizing Furnace for Zinc Melting Process

1.Professional thermal transfer balance calculation and computer aided flow field design to optimize furnace combustion chamber and burner layout design.

2.Custom made ECLIPSE ultra low Nox emission FN-SER burner for  Hot- dip Galvanizing application (Nox ¡Ü 50mg/m3@ 3% O2) .

3.High Velocity Pulse-fired Combustion System ( flame outlet speed : 165m / s ) enhances convective heat transferring. Combustion configure comply with US NFPA86C and Europe EN746-II Safety Codes .

4.Kettle is equipped with insulated heat shields to eliminate the danger of hot spots.

5.The furnace is lined with nanomaterials insulation and a ceramic fiber wall, making sure few heat loss from the outer furnace walls. The

temperature rising of the outer wall surface is no more than 25¡æ , within the rated production capacity of the furnace.

6.High thermal efficiency (65%);Gas consumption saving up to 30% compared to conventional furnace.

7.State-of-the-art modular design and the factory pre-construction make easy & fast on-site installation.

8.Siemens PLC based intelligent HDG control and  management system featuring ZINC Auto Melt, gas leakage and ZINC leakage warning devices, self-troubleshooting, remote diagnosis and supervision function, providing 7X24 around clock Mobile APP technical support.

Wedone Thermoprocess (Shanghai) Co., Ltd
