ZONTES ZT150T-M
ZONTES ZT150T-M
ZONTES ZT150T-M
ZONTES ZT150T-M
ZONTES ZT150T-M
ZONTES ZT150T-M

Manufacturer

  • Product Details
  • Company Profile

ZONTES ZT150T-M







Whole vehicle
Power system
Suspension system
length (mm)2000The bodyAluminum alloyFrame systemSteel pipe frame
Width (mm)790Cylinder numberSingle cylinderTire structureSemi-slick tires
Height (mm)1280Camshaft systemSingle overhead camshaft(SOHC)Front rim sizeMT2.5×14
Wheel base (mm)1375Bore X Stoke (mm)58.0 x 56.7Rear rim sizeMT3.5×14
Loading capacity (kg)146Cooling systemWater coolingFront tire specification100/80-14
Gross mass (kg)155Fuel95 and aboveRear tire specification120/70-14
Gasoline tank volume (L)12Compression ratio12 : 1Front brake specificationDisc brake
Seat height (mm)750Displacement(ml)150Rear brake specificationDisc brake


Fuel supply methodIntelligent electrical fuel injectionHeadlamp/tail light/steering lampLED


Electrical fuel injection systemBOSCHBrake systemDual channel ABS


Ignition systemElectric ignition



Idling speed (r/min)1500 ± 100



Maximum power (kW/rpm)11.8 / 8000



Maximum torque (N.m/rpm)15 / 6000



Transmission typeAutomatic stepless speed change



Economical consumption of fuel (L/km)2.1 /100


Smart driving: reducing drivers' burden with technologies

The 3.0 keyless control system supports CAN communication, which enables real-time communication with ECU and instruments. The 4G, GPS, and Bluetooth also enable smart functions with just a tap. The mini key inducts the vehicle as you wish, empowering your trip at every time.

The auto start-stop function allows you to pause and resume your trip freely without wasting fuel. When you release the throttle, the vehicle will be stalled within 3s, and you can start your vehicle by gently pulling the throttle.

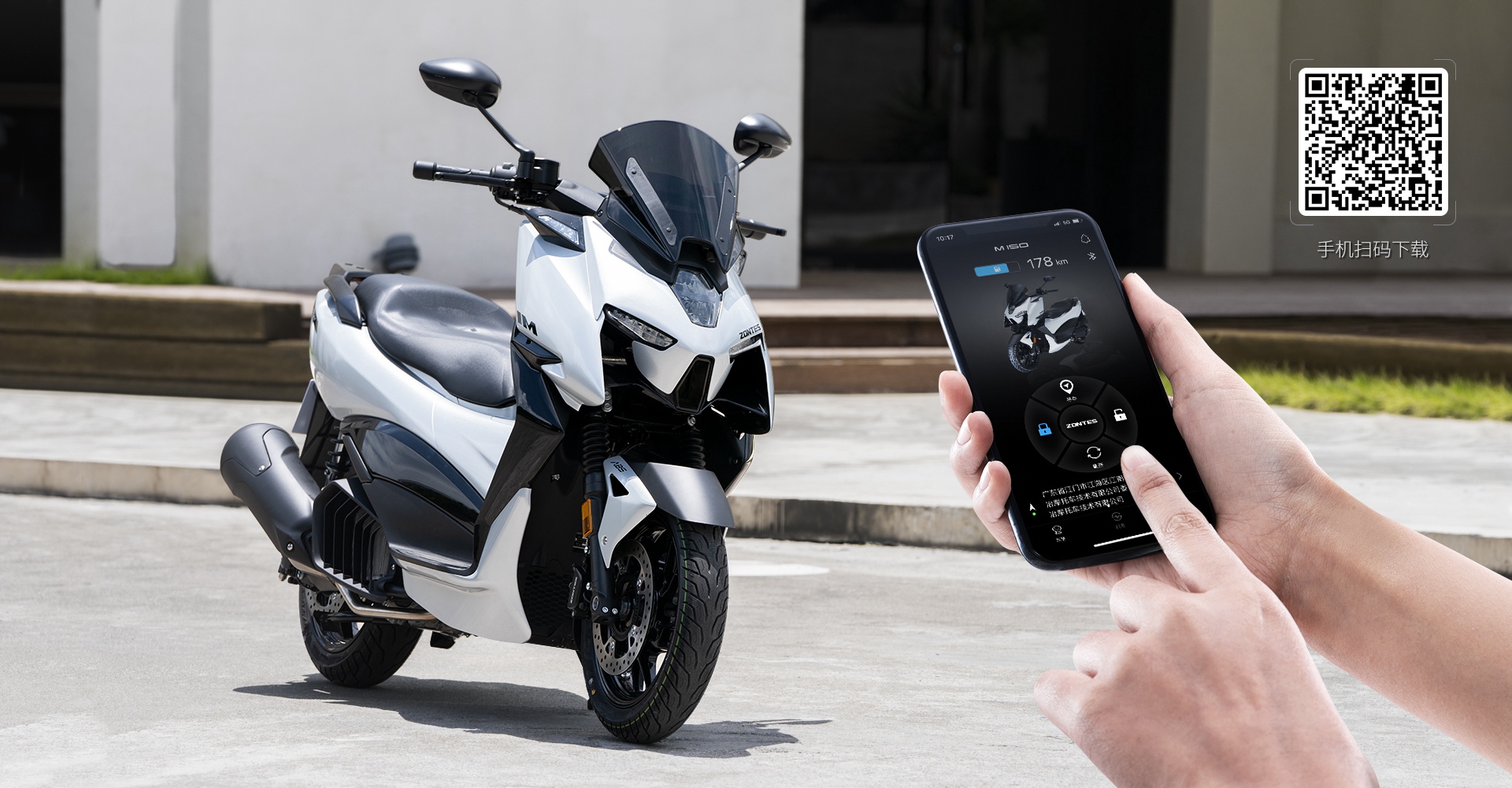

With the Zontes Intelligence app, you can operate your vehicle with a simple tap, assisting your trip at any time.

Gearing up for advance: never stopping on the way of exploration

By adopting the advanced four-valve structure motor with a high compression ratio of 12:1, as well as an efficient water-cooling system, you can get excellent performance with the power output of 11.8kW and 15N.m with lower fuel consumption, assisting you to easily pass through every street.

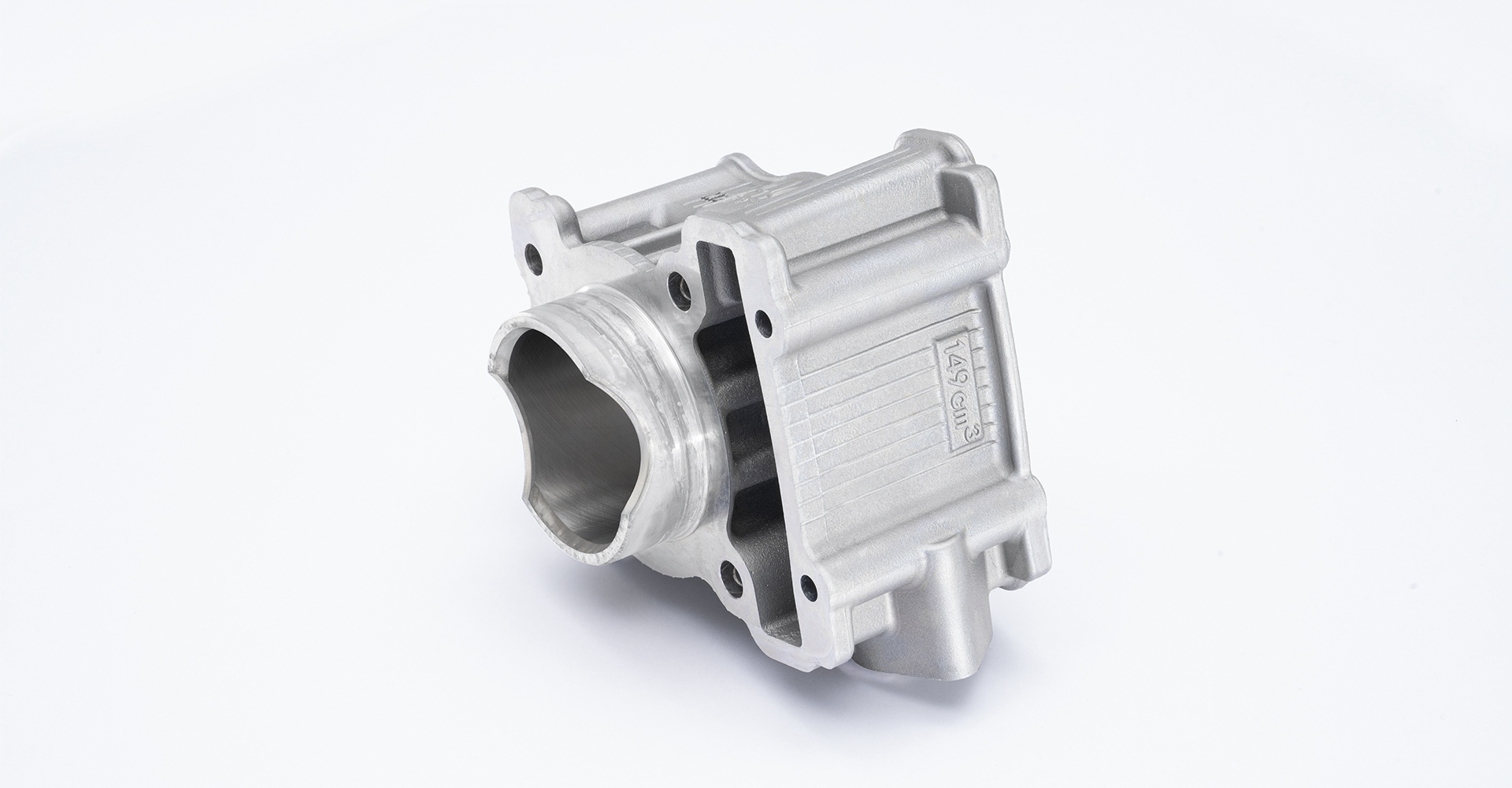

The pure aluminum cylinder without liner features a thinner wall thickness, which can take the heat inside the cylinder away quickly, ensuring the service life of the engine.

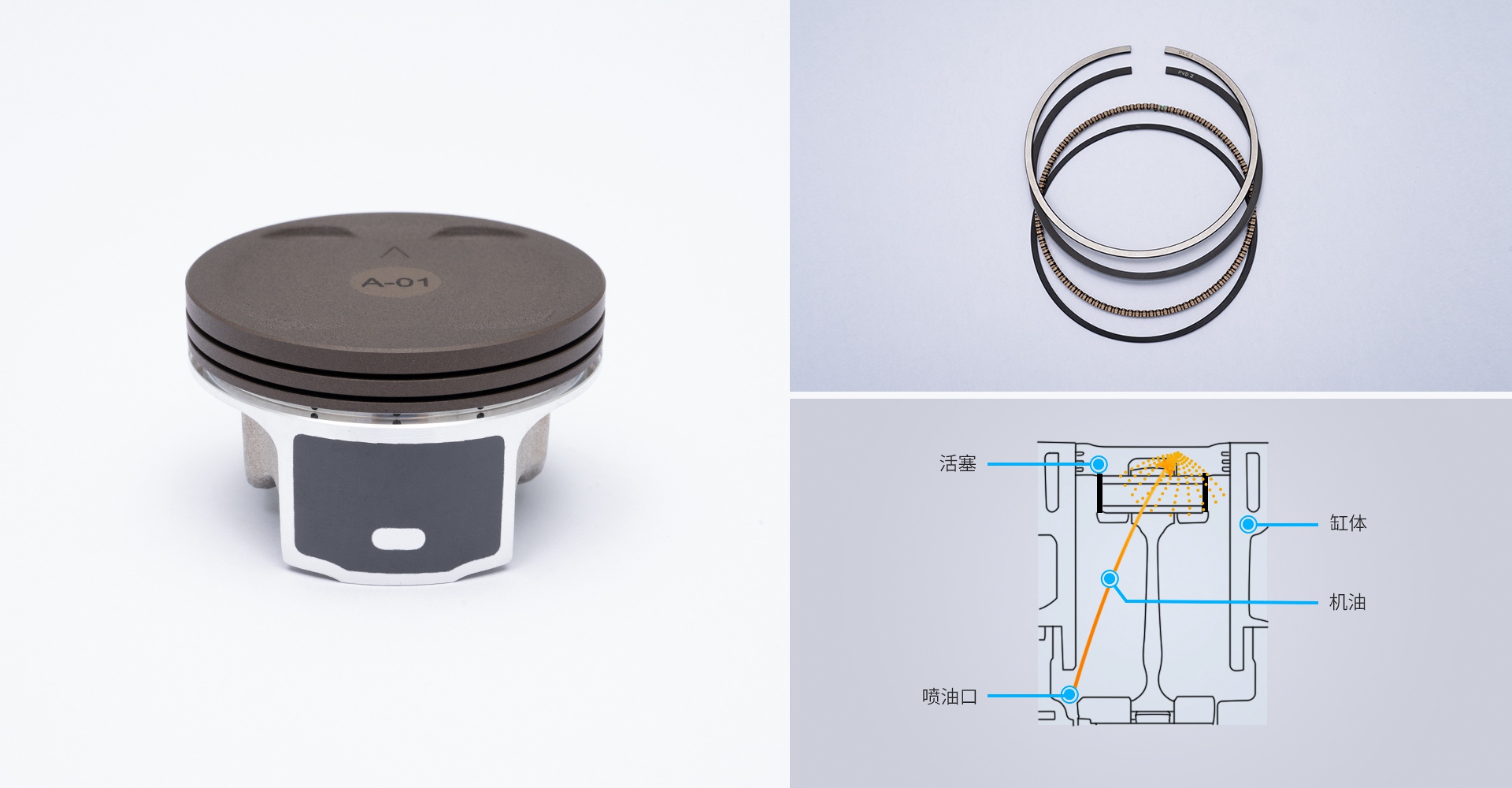

The lightweight casting piston and the piston ring with DLC coating can effectively improve power performance and fuel economy. The piston cooling and lubricating system also ensures the continuity of strong power of the engine.

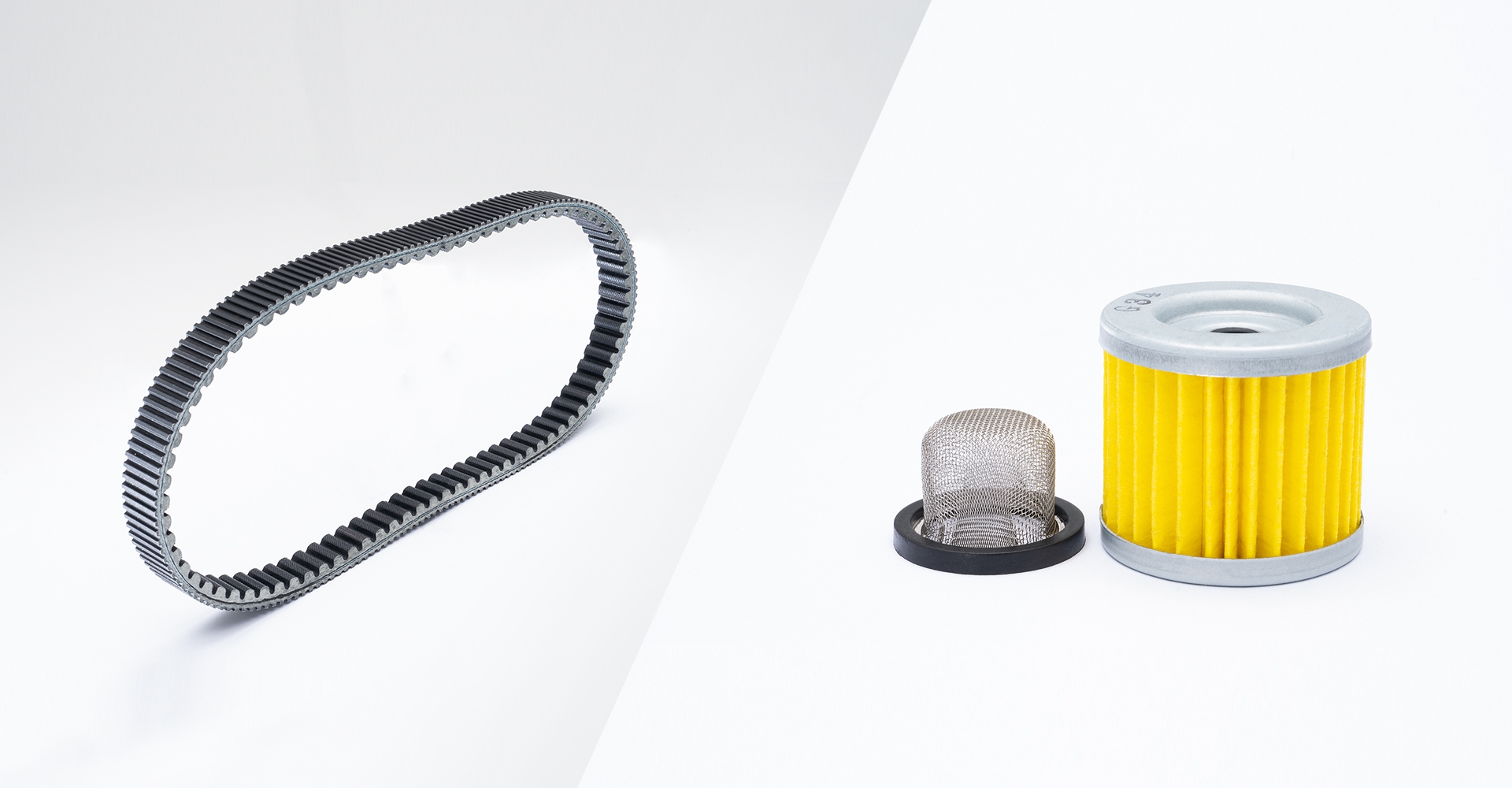

Double-sided toothed belts can improve the performance at high temperatures and the resistance to wear, making the CVT system more durable and comfortable. Additionally, with the engine oil filter of both the strainer and filter element, the cleanness of engine oil is significantly improved, which effectively reduces the wear of accessories.

Stable braking: bringing smooth operation to you

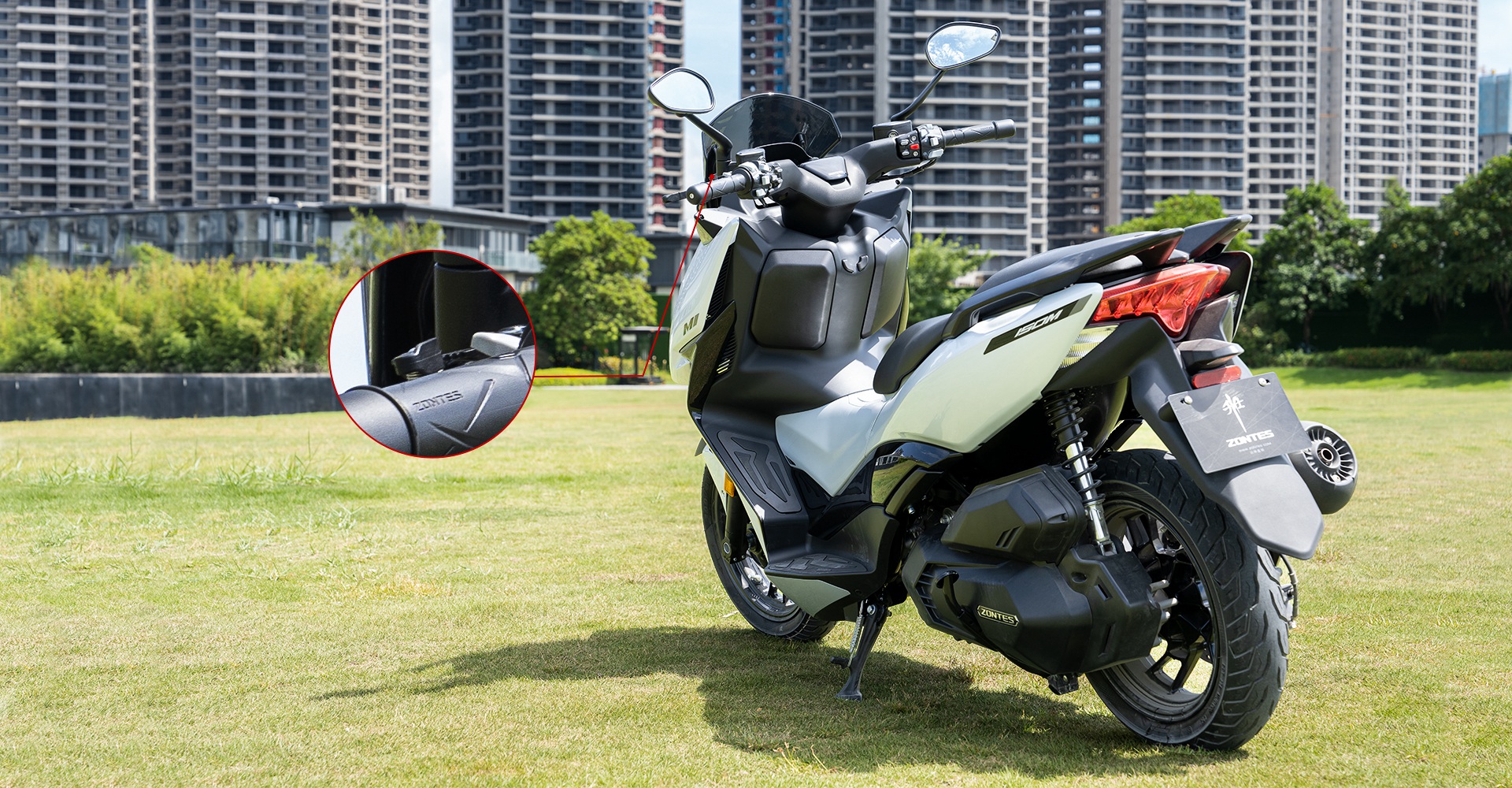

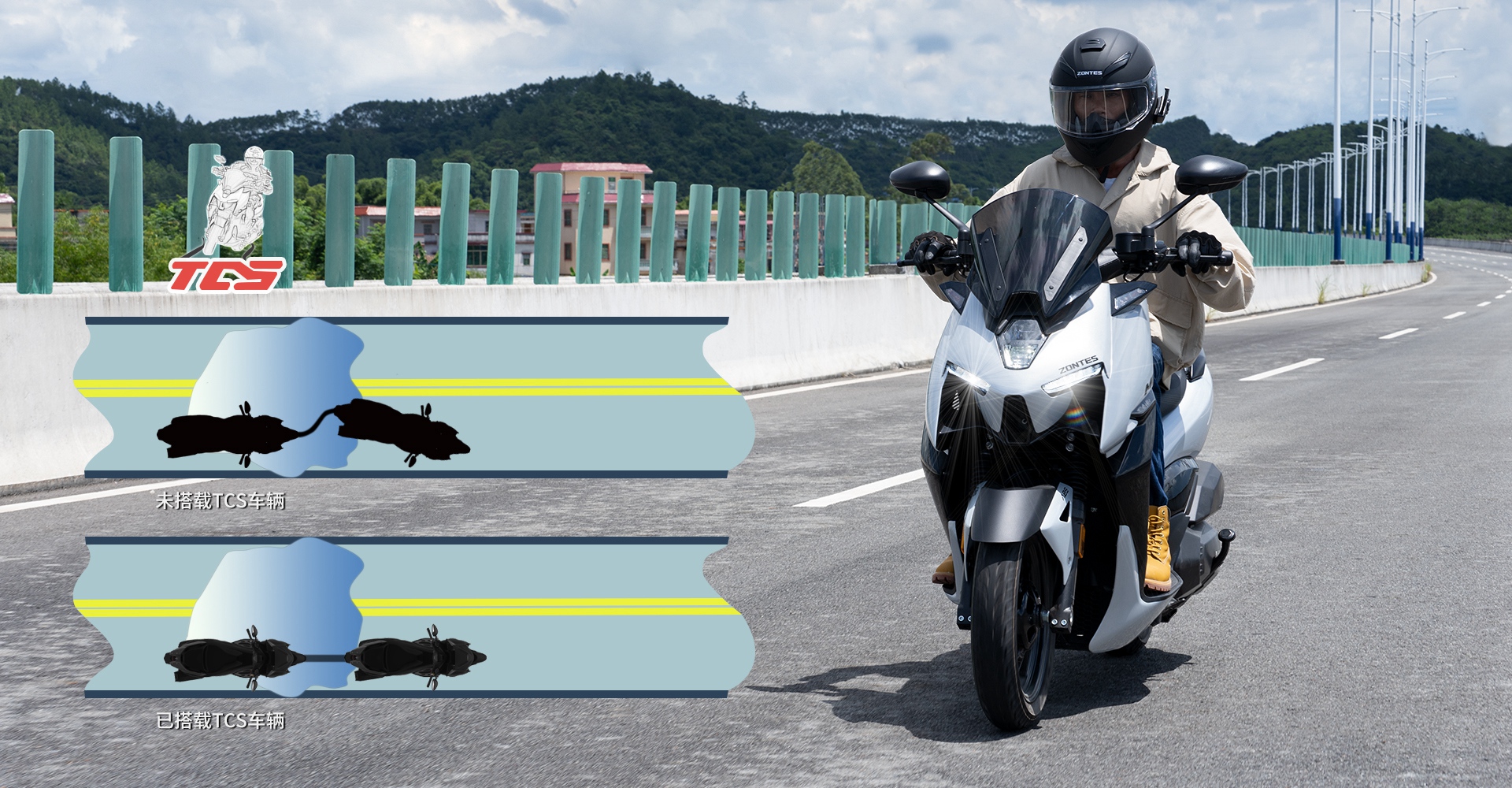

The newly-added traction control system (TCS) and the hold function embedded in the brake handle get safer and more reliable.

The front and rear shock-absorbers are recalibrated. The front one adopts ?35mm positive design, and the rear one adopts ?30mm double-barrel structure. These designs can offset small road bumps, ensuring stability and smoothness on your long journey.

Empowered by the double-channel ABS, you can control the vehicle as you wish, giving full play to your driving skills during the travel.

The new Bosch electronic fuel injection system enables multi-functional control of the vehicle, making your driving experience joyful.

Ease driving experience with a sense of safety in every aspect

The 12L large-capacity fuel tank meets your demand for long-distance travel. Additionally, the tire pressure monitoring function can effectively prevent the risk of tire bursts and protect your safety during travel.

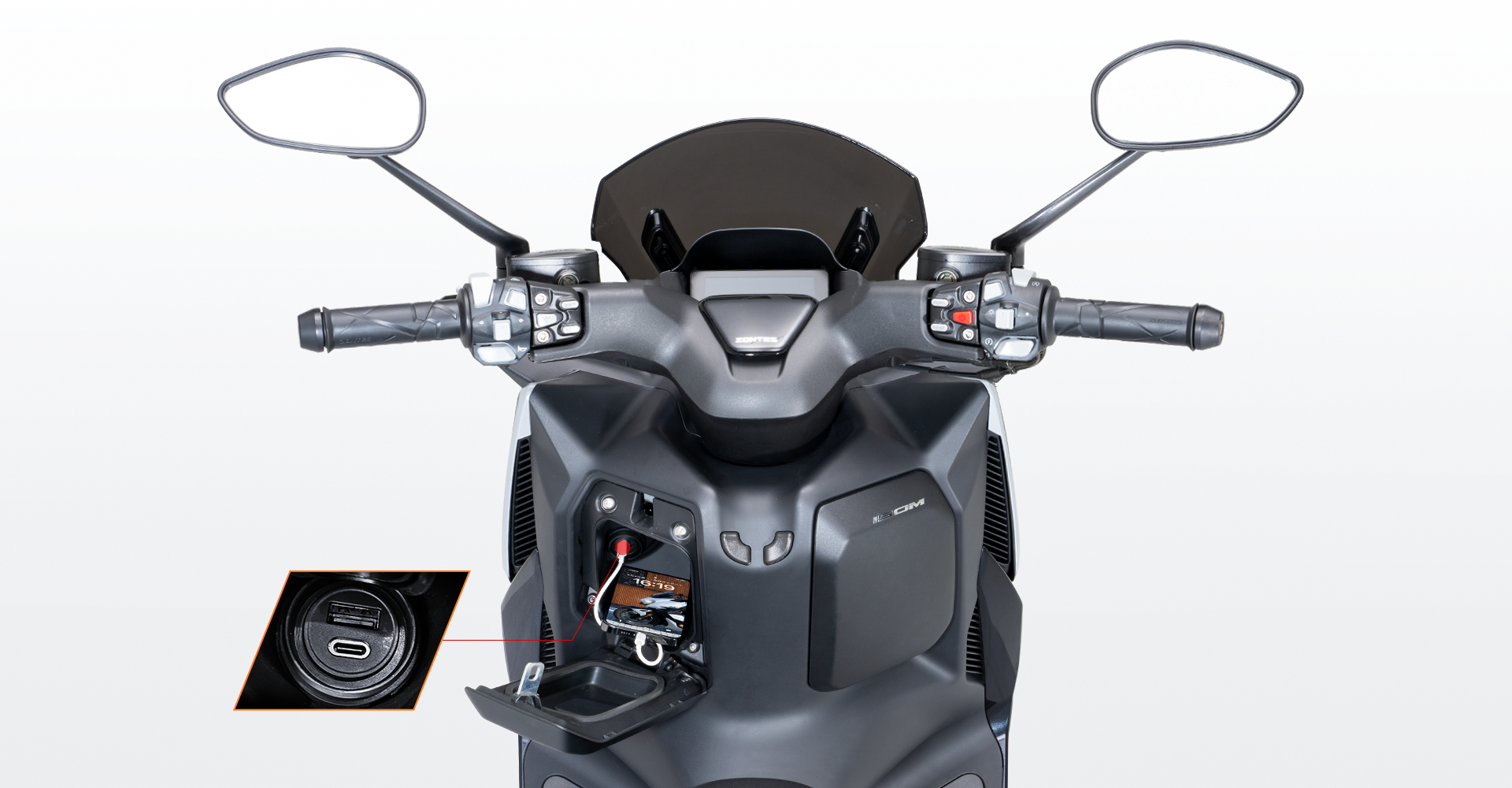

The safe and reliable dual-channel fast-charging USB port makes your travel free from worry.

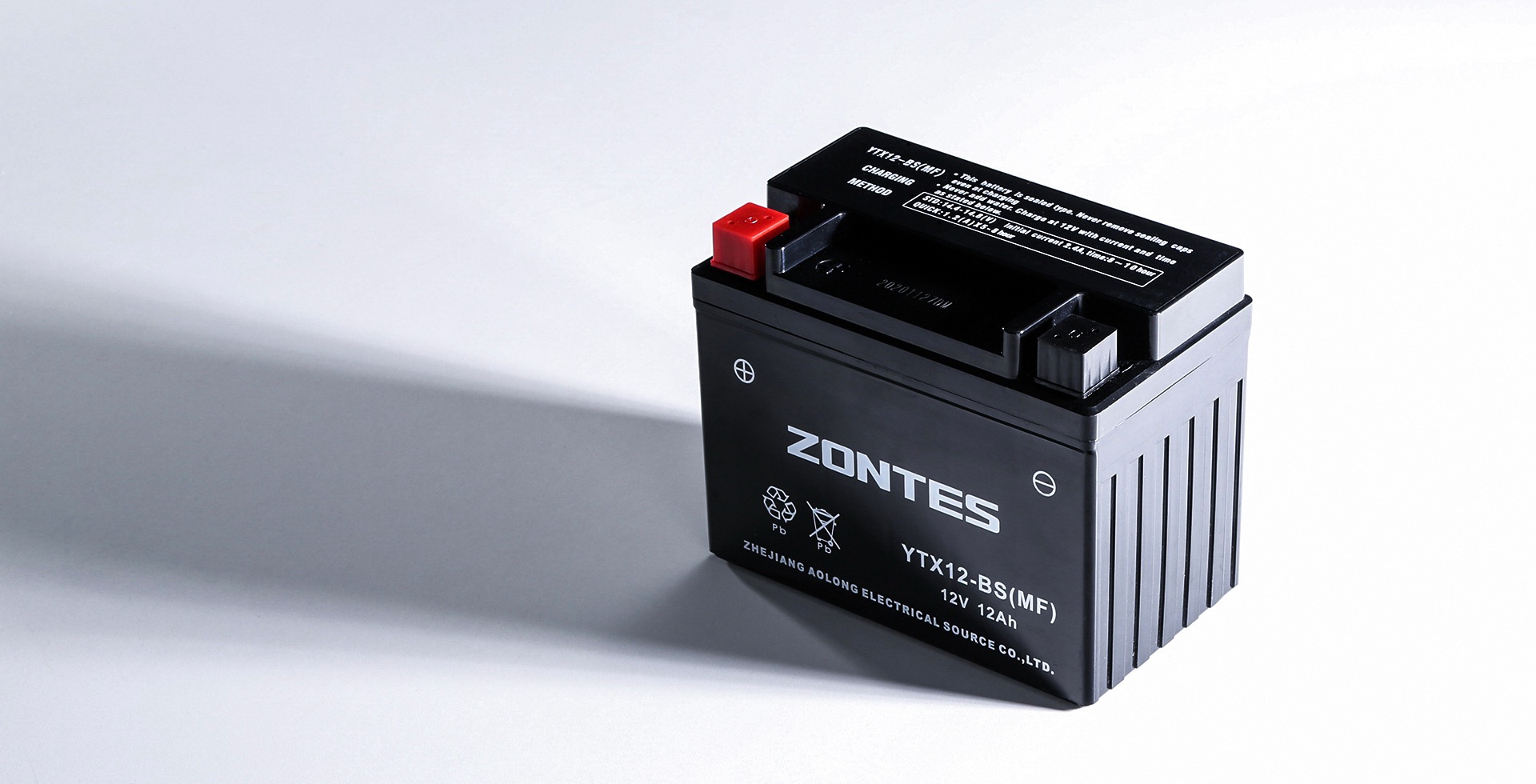

Besides, the 12AH large-capacity battery can provide a long battery life to you.

Sufficient space for storage

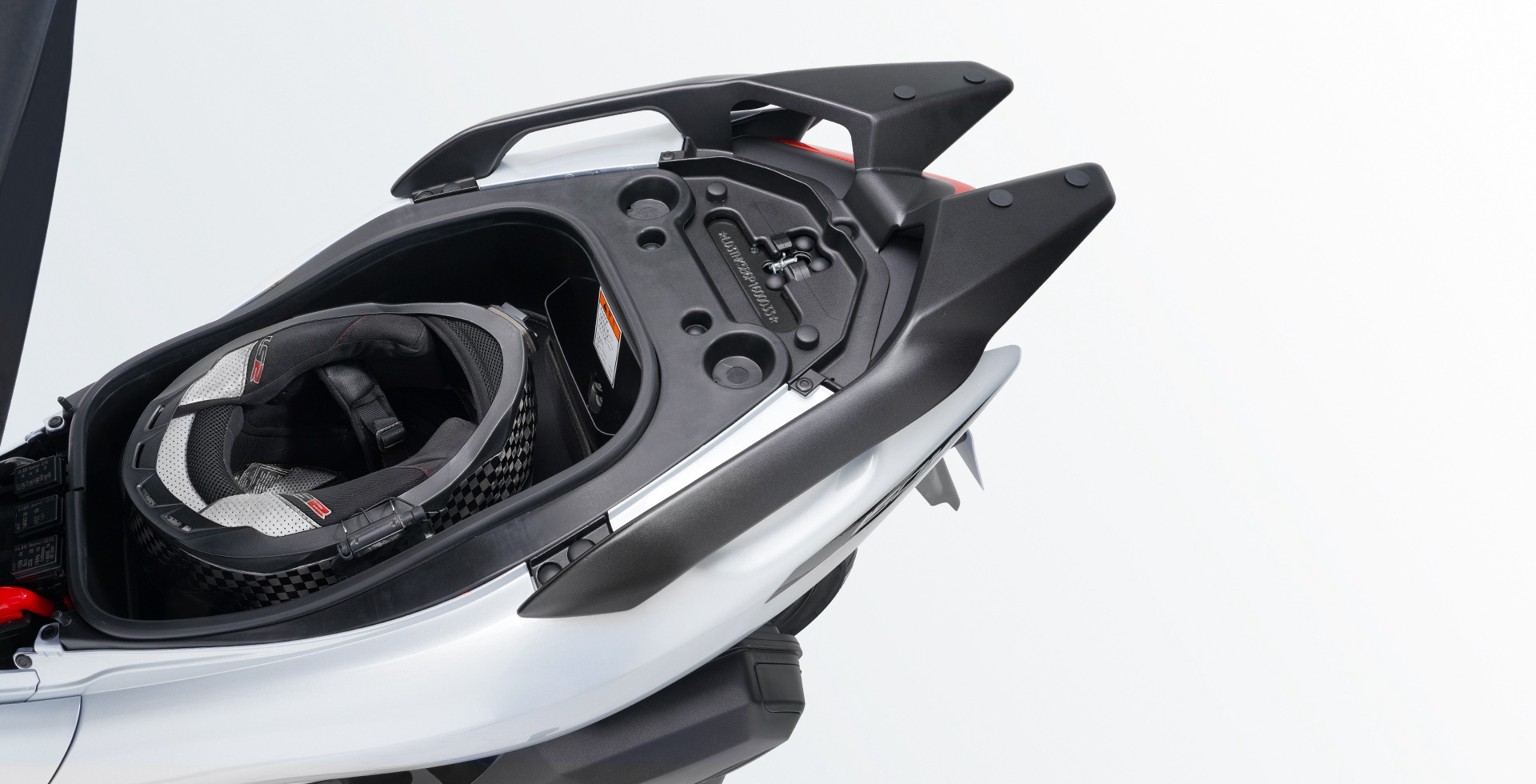

The rear storage compartment has sufficient room to store your full-size helmet, as well as all you need for daily traveling.

Rich optional accessories to express your personalities

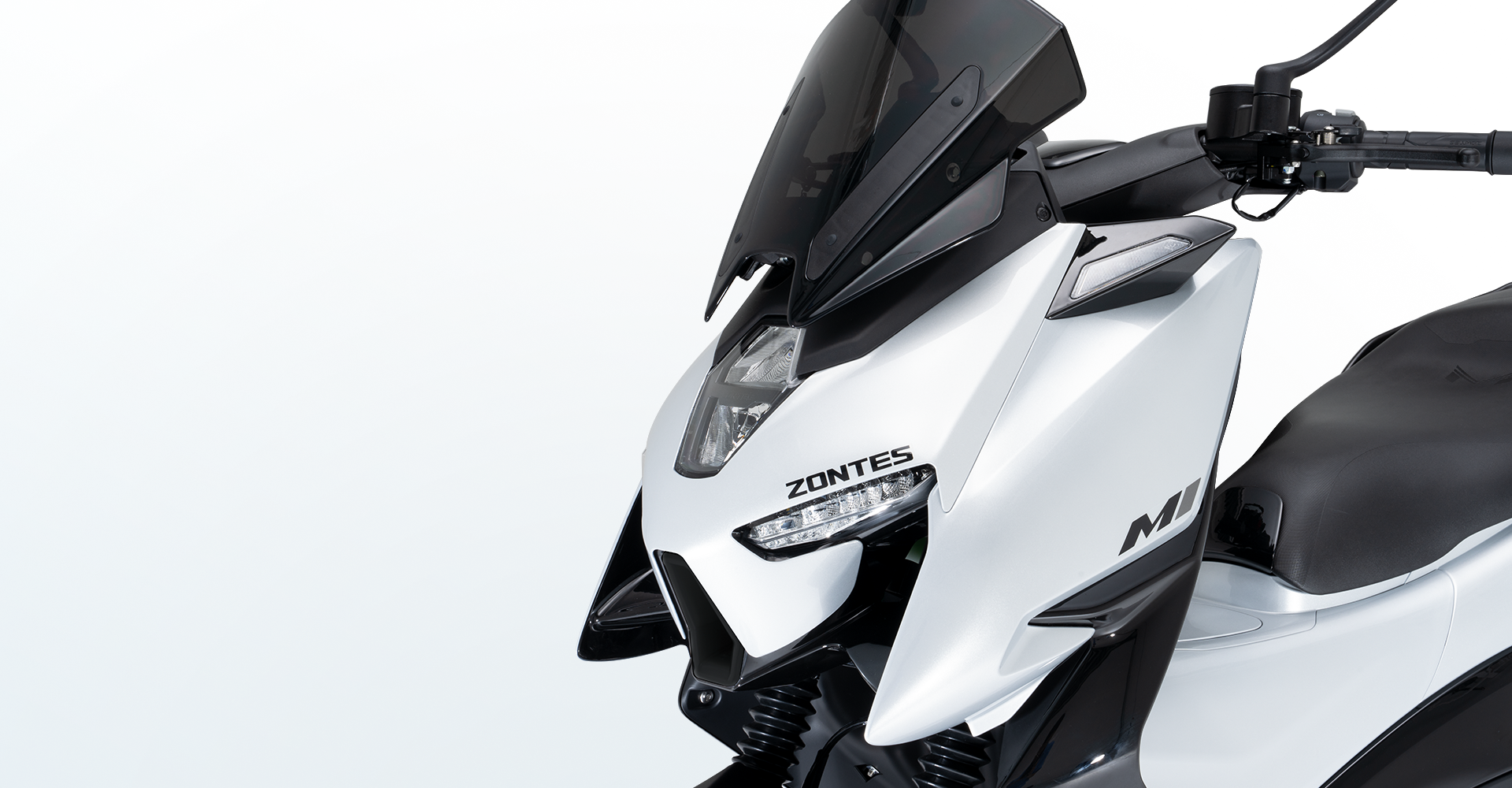

The vehicle is equipped with a sports-style electric windshield and modified parts, with an optional large-size windshield, wind-prevention hand protective cover, electrical heating handlebars, tail box, and other accessories. All of them feature fine details and unique designs, allowing you to enjoy your trip freely.

The high-definition and high-brightness TFT full-color IPS LCD instrument features four themes with a complete set of functions and a smooth operating experience, giving you complete control of your vehicle.

Bright and sharp lamps to light up your beautiful travel

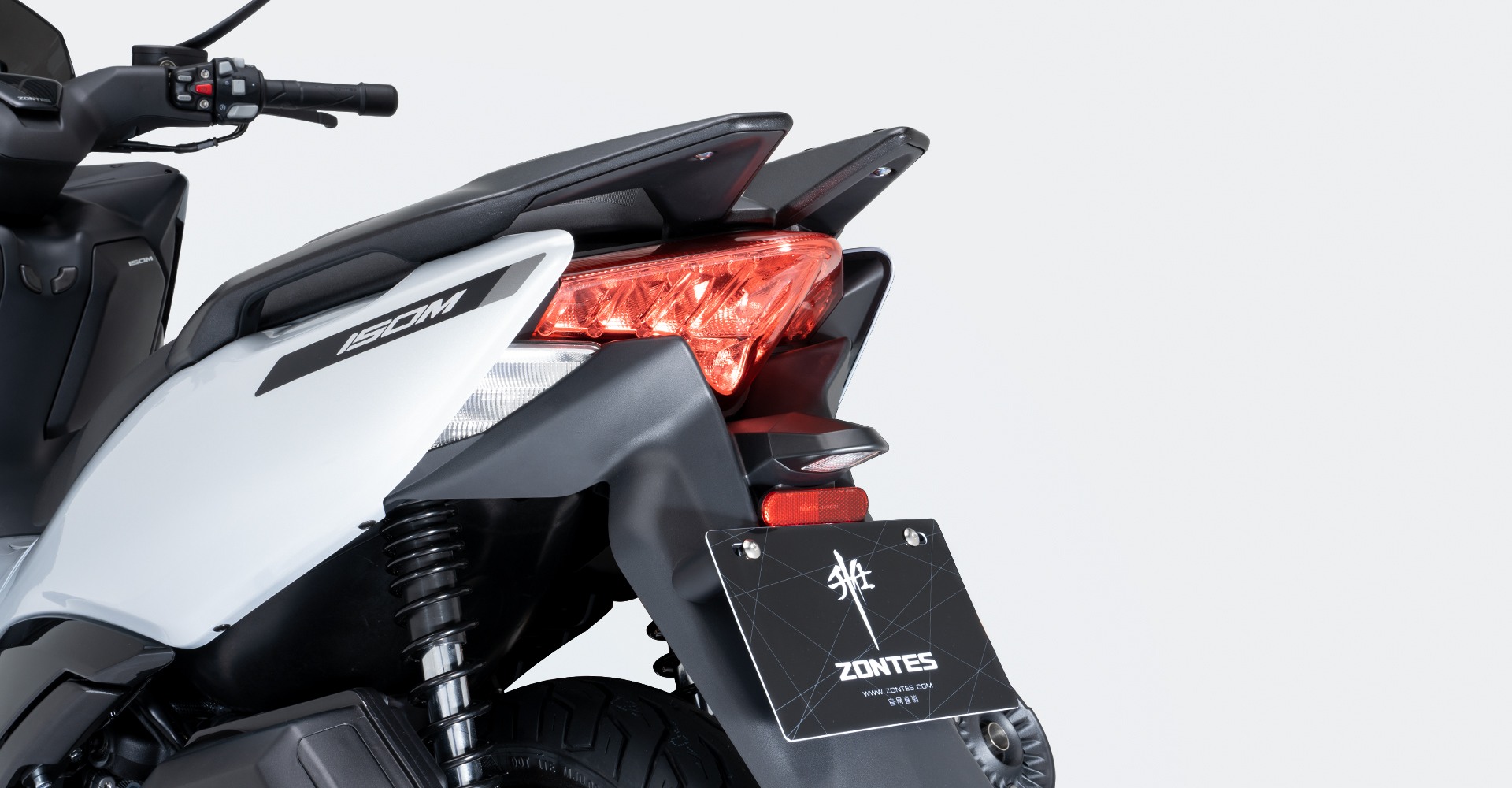

LED lamps on the whole vehicle and the ultra-bright headlamp, featuring successive design and fluent visual effects, bring a joyful experience to your trip in your city.
