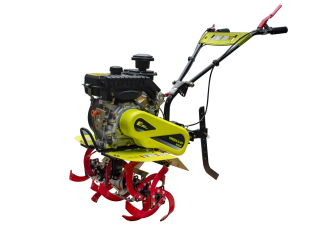

GG1WGCZ3.5-60,Diesel small tiller
Send Inquiry
CCCME
Member
Recommended by CCCME
- Product Details
- Company Profile
Performance features: compact and beautiful, hardly aluminum alloy box body, can be matched with various power, simple operation, suitable for rotary cultivation and weeding in mountainous areas, vegetables and orchards
TECHNICAL DETAILS | |||||||||||
| MODEL No. 型号 | 1WGCZ3.5-60 | Diesel small tiller GG1WGCZ3.5-60 小型柴油微耕机 | |||||||||
| Power Applied 发动机 | 3.5kw Diesel Engine ， 170FA 柴油动力 |   | |||||||||
| Fuel Type 燃油类型 | Diesel 柴油 | ||||||||||
| Starting System 启动系统 | Recoil Start 手启动 | ||||||||||
| Rated Speed r/min 额定转速 | 3600 | ||||||||||
| Structure 结构型式 | Handheld 手持式 | ||||||||||
| Working Width (mm) 耕宽 | 600 | ||||||||||
| Fuel consumption/unit working area 单位作业面积燃油消耗量kg/hm2 | ≤35 | ||||||||||
| Transmission 传动方式 | Belt transmission 皮带传动 | ||||||||||
| Knife roller transmission mode刀辊传动方式 | Gear drive 齿轮传动 | ||||||||||
| Design Speed of knife roll (r/min)刀辊设计转速 | 183 | ||||||||||
| Max turning radius of knife roll (mm) 刀辊最大回转半径 | 155 | ||||||||||
| Knife roll Q'ty (pcs) 刀辊总安装刀数 | 18 | ||||||||||
| Adjustment range of handle (horizontal) （o） 扶把调整幅度（水平方向） | 0 | ||||||||||
| Adjustment range of handle (vertical) （o） 扶把调整幅度（垂直方向） | 30 | ||||||||||
| Main clutch type 主离合器型式 | Tension pulley 张紧轮式 | ||||||||||
| Main clutch status 主离合器状态 | Normally open 常开 | ||||||||||
| Model demension (mm) 整机尺寸 | 1280×620×1000 | ||||||||||
| Packing demension (mm) 包装尺寸 | 1300×640×1020 | ||||||||||
| N.W. (Kg) 净重 | |||||||||||
| Standard Configurations 标准配置 | 1) 280-6 travel tires x 2pcs/ 280-6 轮胎 2) Anti twining blades(18pcs of blades in total-2x3pcs3sets)/ 防缠刀（2x3片三组） | ||||||||||
| More Options 其它选择 | 1，以上价格为纸箱、铁骨架包装价、若须换免熏木箱包装170一178类加10USD/台 The above price is for cartons+iron frame packaging, and for wooden cases should be plus USD 10/SET | ||||||||||

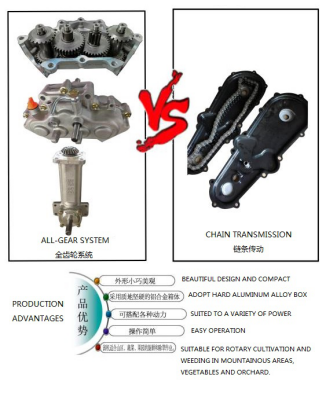

| 性能特点：1)外形小巧美观，质地坚硬的铝合金箱体，可搭配各种动力，操作简单，该机适合山区、蔬菜、果园的旋耕和除草作业 Performance features: compact and beautiful, hardly aluminum alloy box body, can be matched with various power, simple operation, suitable for rotary cultivation and weeding in mountainous areas, vegetables and orchards 2）double-belt,aluminum gear box,driven by tension pulley. 双皮带，全铝合金箱体，张紧轮传动 | |||||||||||
