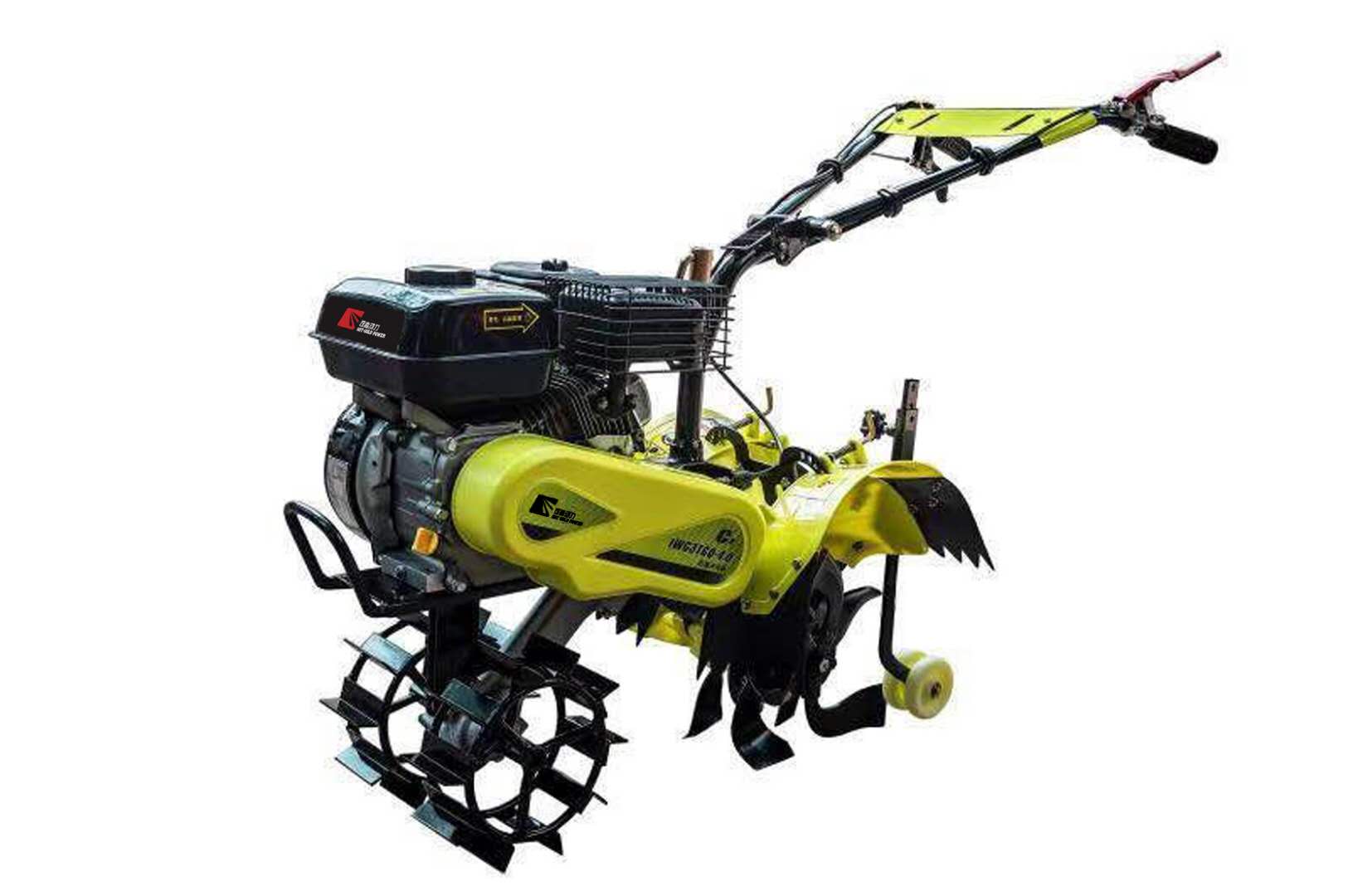

GG3TGQ-4.0 Gasoline Pastoral management
GG3TGQ-4.0 Gasoline Pastoral management

GG3TGQ-4.0 Gasoline Pastoral management

Add Favorites Send Inquiry

Member Details

CHONGQING GO-GOLD POWER MACHINERY CO.,LTD

China

CCCME Member
Recommended by CCCME
View More>
  • Product Details
  • Company Profile

With the above three kinds of cutters, it can be realized: ditching, weeding, loosening soil, digging holes, backfilling. There are five more functions than the traditional micro-tiller



TECHNICAL DETAILS

MODEL  No.  型号3TGQ-4.0Gasoline Pastoral management 汽油田园管理机
Power Applied   发动机7 HP LONCIN Gasoline Engine ，   隆鑫170F汽油动力
Fuel Type   燃油类型Gasoline     汽油
Starting System    启动系统Recoil  Start  手启动
Rated Speed    r/min    额定转速3600
Structure  结构型式Twin shaft ;wheel type
Working Width (mm)        耕宽600
Weeding width (mm)        锄草宽度580
Transmission 传动方式Belt transmission     皮带传动
Type of matching ditching device 配套开沟装置型式 Blade
Max width of ditching(mm)  配套开沟装置型式最大工作宽度 230
Type of supporting soil cultivating 配套培土装置型式Blade
Max width of soil cultivating (mm)  配套培土装置最大工作宽度230
Adjustment range of handle (horizontal)    （o）    扶把调整幅度（水平方向）adjustment 可调
Adjustment range of handle (vertical)   （o）  扶把调整幅度（垂直方向）adjustment 可调
Main clutch type          主离合器型式                           Tension pulley  张紧轮式
Main clutch status       主离合器状态                         Normally open  常开
Model demension    (mm)    整机尺寸 1340×390×800
Packing demension   (mm)   包装尺寸 1360×410×1000
N.W. (Kg)    净重 42.5
Standard Configurations             标准配置Trenching knife 5PCS 五片开沟刀
Aanti-winding knife 防缠刀
Walking tire 行走胶轮
Double layer creeping wheel 双层爬行轮
More Options              其它选择1，以上价格为纸箱、铁骨架包装价、若须换免熏木箱包装170一178类加10USD/台                               The above price is for cartons+iron frame packaging, and for wooden cases should be plus USD 10/SET
Remark        备注1) The function of trenching knife: trenching and digging；开沟刀的功能：开沟，打坑
2) The function of anti-winding knife: loosening soil and backfilling；防缠刀的功能：松土，回填
3) The function of weeding wheel: weeding;除草轮的功能 ：除草
With the above three kinds of cutters, it can be realized: ditching, weeding, loosening soil, digging holes, backfilling. There are five more functions than the traditional micro-tiller.配以上三种刀具可以实现：开沟，除草，松土，打坑，回填。比传统的微耕机多了五大功能。                           Suitable for rotary cultivation and weeding in mountainous areas, vegetables and orchards该机适合山区、蔬菜、果园的旋耕和除草作业
