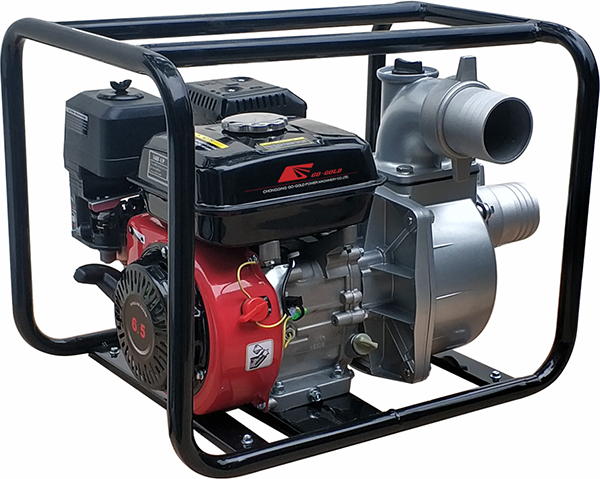

GGQDZ80-30 GASOLINE WATER PUMP
GGQDZ80-30 GASOLINE WATER PUMP

GGQDZ80-30 GASOLINE WATER PUMP

  • Product Details
  • Company Profile

The lightweight and corrosion-resistant aluminium alloy and double impeller aluminium alloy structure can achieve the balance and maximization of flow and lift. The pump body is manufactured with lightweight and solid aluminium alloy. The mechanical seal with high-quality ceramic is extremely critical for water pump.


  Specification

进/出水口直径Inlet/Outlet MM(inch)80(3")
扬程Total head(m)30
吸程Suction head(m)5
流量Flow (m3/h)50
油箱容积Fuel tank capacity(L)3.6
燃油消耗率Fuel consumption ratio(g/kw.h)≤395
净重Net weight(kg)27
包装尺寸Packing Size (LxWxH) (mm)570x450x450
发动机Engine170F
排量Displacement(ml)212
额定功率Rated power(kw/rpm)4.0/3600
机油容积Oil capacity(L)0.6
