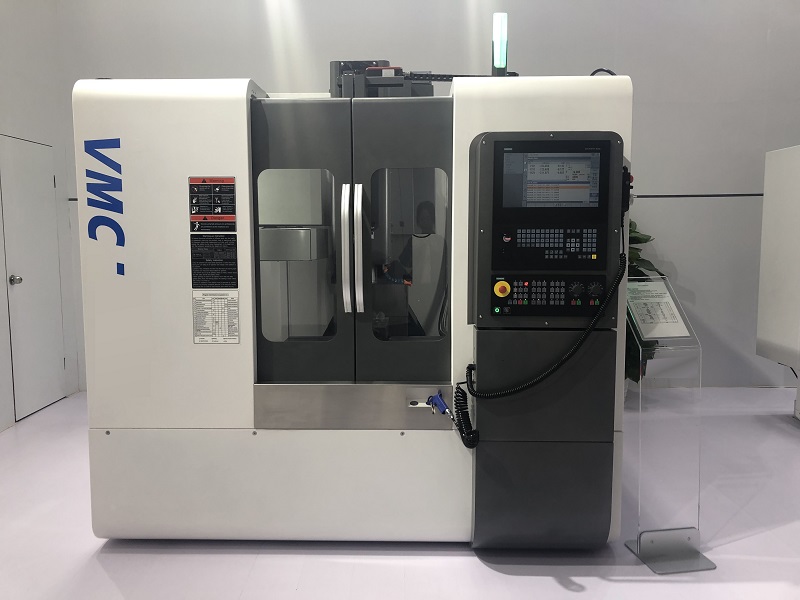

Vertical machining center
Taiwan spindle BT40-120-8000RPM (highest speed 6000rpm);
X,Y axis Taiwan HIWIN or PMI linear guide ways and Z axis Harden box type;
Taiwan HIWIN or PMI ball screws;
Taiwan umbrella type tool magazine with 16 tools;
spindle blowing chip removal system; spindle air curtain protection ;
Germany FAG bearings; auto centralized lubrication system;
rigid tapping; two water cooling, one air cooling; electrical hand wheel;
working lamp; RS232 interface; alarm light; DNC online processing; CE Electrical
unit | VMC640 | |
worktable : |
|
|
Table size | mm | 920*400 |
T slot | no | 3 |
Centre distance | mm | 120 |
T-Width | mm | 14 |
Max. load of worktable | kg | 300 |
machining range : |
|
|
mm | 650 | |
Cross travel | mm | 400 |
Vertical travel | mm | 500 |
spindle nose to table surface | mm | 120-620 |
spindle : |
