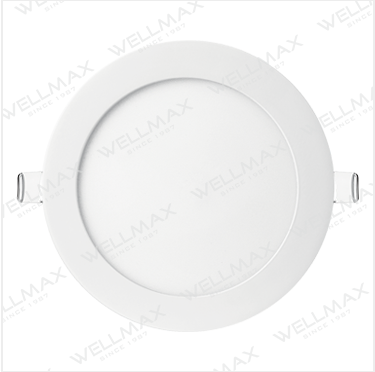

Recessed Slim Downlight-Die casting Aluminum
Product Features:
*Supreme quality with Samsung LED
*Easy to install and low maintenance cost.
*Wide range applications
*Special design to avoid light leakage from the back
*Long lifespan
Applications: Home, shopping mall, restaurant, etc.
L-DL- 0010
L-DL- 0020
Specification:
| Item number | Voltage | Watts | Luminous Flux | Beam angle | PF | CCT | CRI | Lifetime | Dimension | Hole size | Dimmable |
| (V) | (W) | (lm) | (°) | （K） | (hrs) | Φ*L(mm) | (mm) | ||||
L-DL-0010- 3W | 100-240V | 3W | 145lm | 120° | ＞0.4 | 3000K 4000K 6500K | ≥80 | 25000 | Φ85*25 | Φ75 | no |
| L-DL-0010- 6W | 100-240V | 6W | 330lm | 120° | ＞0.5 | 3000K 4000K 6500K | ≥80 | 25000 | Φ120*25 | Φ105 | no |
L-DL-0010- 9W | 100-240V | 9W | 540lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | Φ150*25 | Φ135 | no |
L-DL-0010- 12W | 100-240V | 12W | 780lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | Φ170*25 | Φ155 | no |
L-DL-0010- 15W | 100-240V | 15W | 1050lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | Φ190*25 | Φ175 | no |
L-DL-0010- 18W | 100-240V | 18W | 1250lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | Φ225*25 | Φ205 | no |
L-DL-0010- 24W | 100-240V | 24W | 1680lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | Φ300*25 | Φ285 | no |
L-DL-0020- 3W | 100-240V | 3W | 145lm | 120° | ＞0.4 | 3000K 4000K 6500K | ≥80 | 25000 | 85*85*25 | 75*75 | no |
L-DL-0020- 6W | 100-240V | 6W | 330lm | 120° | ＞0.5 | 3000K 4000K 6500K | ≥80 | 25000 | 120*120*25 | 105*105 | no |
L-DL-0020- 9W | 100-240V | 9W | 540lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | 150*150*25 | 135*135 | no |
L-DL-0020- 12W | 100-240V | 12W | 720lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | 170*170*25 | 155*155 | no |
L-DL-0020- 15W | 100-240V | 15W | 1050lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | 190*190*25 | 175*175 | no |
| L-DL- 0020-18W | 100-240V | 18W | 1250lm | 120° | ＞0.9 | 3000K 4000K 6500K | ≥80 | 25000 | 225*225*25 | 205*205 | no |
