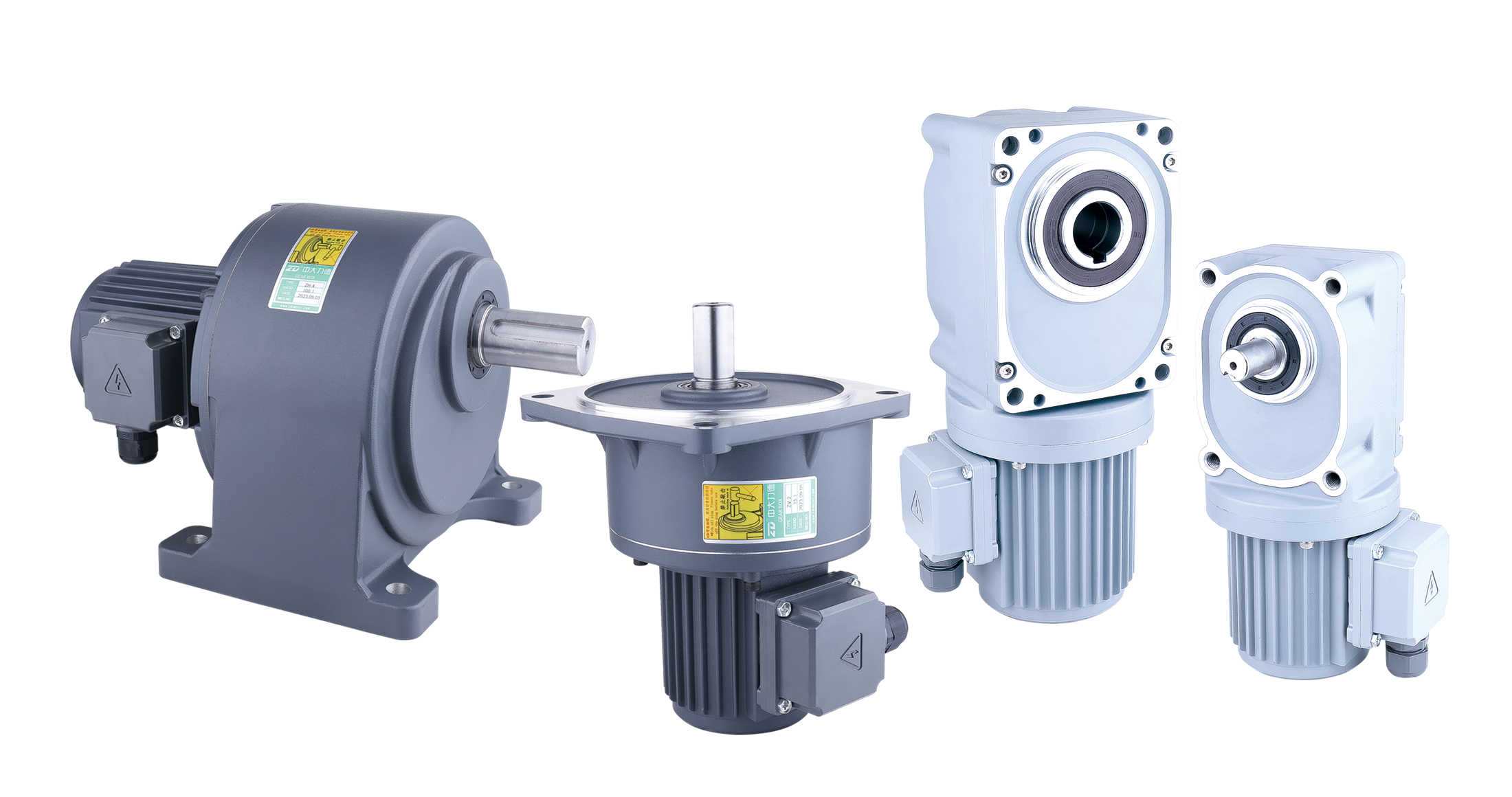

SMAILL AC GEAR MOTOR
- Product Details
- Company Profile
high strength, low noise, and long lifespan, it boasts a maximum power of 3700W, a reducer gear ratio of 750, and unique vertical and horizontal installation options, providing customers with ample installation space
Name: zd motor model Number: ZH750-30-S
Type: Asynchronous Motor Frequency: 50/60Hz
Output Power: 750W Protect Feature: Drip-proof Phase: Three-phase
Certification: CCC, CE, ROHS, UL AC Voltage: 220/380V
Place of Origin: Zhejiang, China (Mainland)
Packaging & Delivery in 15daysPackaging Details cnt NotesGearboxThe output shaft diameter of gearbox 1#,2#,3# are 18,22,28mm separately.the material of gearbox is alum alloy.4#,5#,6# are 32,40,50 respectively.
Gearbox is made of cast iron. Gear pieceThe material 40Cr mixes to HB280,then dealed with high frequency quencher HRC50.Gear should be processed by milling with high precision.The class is 6. Gear shaft The material 20CrMnTi will be changed into HRC60 through processing of cementite quencher. Gear shaft will be processed with gear hobbing.Precision class is 6.Motor shaftThe material 40Cr mixes to HB280,then dealed with high frequency quencher HRC54.Finally,gear is cut for the second.motor shaft will be processed with gear hobbing.Precision class is 5-6.Ball bearingWe adopt tight bearing with high precision,to make sure longterm running lift.Oil sealGear shaft gives priorith to enduring high temp,avoiding oil infiltration.Terminal boxTwo type.one is al alloy,which equips good capability of waterproof and dustproof.Protection grade is IP54.The other is steel case with deft structure.Protection grade is IP20.Gear of small series:1.The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.2.The material of shafe gear is 20CrMnTi,quench to HRC58-61 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.2.The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.Brake series:1.Economical and compact.2.High pressure-resistance,good insulation,insulation class F,can work in different kinds of ambient.3.Long life,adopting abrasion-resistance lead-free,non asbestos friction plate,making sure the long life.4.It's selective of assembling hole diameter and easy assembling.5.Multiple assembling way meets different customers.
