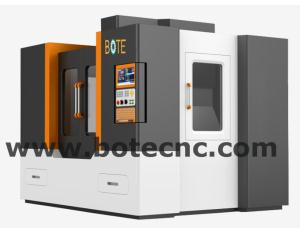

VL430 cnc machining center
Send Inquiry- Product Details
- Company Profile
1----Controllers We use Fanuc ,Siemens,Mitsubishi, GSK controllers. We use Fanuc the most(Beta servo motors) 2------Main components a) Spindle---Taiwan brand b) Tool changer---Taiwan brand c) Linear guideways ----Taiwan Hiwin d) ballscrews and bearing ------Taiwan brand e) Electronics—Schneider brand 3-------4 axes and 5 axes We can fit 4 axes or 5 axes on our machining centers. 4—Machine Metal cover We can paint machine to any colour as customer requirement. And we can change metal cover design for customers . Also we can produce machine under customer brand and put customer’logo on machine. 5---Safety Auto power-off electrical switch
VL550 CNC Millling Machining Center--BOTE CNC MACHINE
|
| VL550 Linear guideways in 3 axes | |
| Travel | X axis | 550mm |
| Y axis | 350mm | |
| Z axis | 500mm | |
| Spindle nose to table | 100-600mm | |
| Spindle nose to column | 419mm | |
| Feed | max X rapid feed | 48m/min |
| max Y rapid feed | 48m/min | |
| max Z rapid feed | 48m/min | |
| Cutting feed | 1-10m/min | |
| Torque | X:7 N.m Y:7 N.m Z:7 N.m | |
| Table | Table size | 700*350mm |
| Max load | 300Kg | |
| Table surface to floor | 820 mm | |
| T slot | 3*18*105mm | |
| Spindle | Type | Belt |
| Speed | 8000 rpm | |
| Spindle taper | BT40 | |
| Main motor | 5.5KW | |
| Accuracy | Accuracy (JIS) | 0.005/300mm |
| Repeatability (JIS) | 0.003mm | |
| Other | Weight | 2600 Kgs |
| Size | 2100*1900*2300 | |
