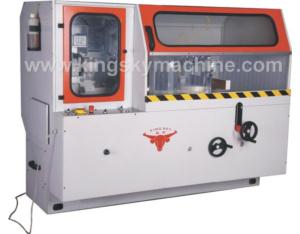

Curtain Wall Notching Saw KS-J265
Chat Now!
Send Inquiry- Product Details
- Company Profile
curtain wall machine.The machine is mainly used for the processing of end surface connector of aluminum curtain wall profile, ..
The machine is developed and designed by adopting mature Italian design idea in combination with the newest application requirement and habit, and the machine is mainly used for the processing of end surface connector of aluminum curtain wall profile, window and door profile and other aluminum industrial profiles. It’s equipped with accurate German digital display angle measuring device and Italian branded motor, as well as 22" German hard alloy saw blade, it has features of high linear velocity and precision and the swing angle of both blades is ±45°. It's the most stable machine after release to market, and wins high appraisal and recognition of customers; it’s one of our featured machines.
TECHNICAL DATA
| Model and parameters | Curtain Wall Notching Saw |
| Cutting width* Cutting height | 260x210(90°)/260X146(45°) |
| Power of main motor | 2X2.6kW |
| Rotating speed of main motor | 2840RPM |
| Size of saw blade | Φ550/Φ500XΦ30X120T |
| Rotating angle of saw blade | ±45° |
| Feeding speed of saw blade | 0-3m/min |
| Rotating angle of worktable | ±45° |
| Working air pressure | 0.6-0.8MPa |
| Working voltage | 380VAC 50HZ |
| Overall Dimension (L*W*H) | 2350x1575x1800mm |
| Weight of machine | 1200Kg |
| Optional Device | Clamps, positioning template/spare tool |
