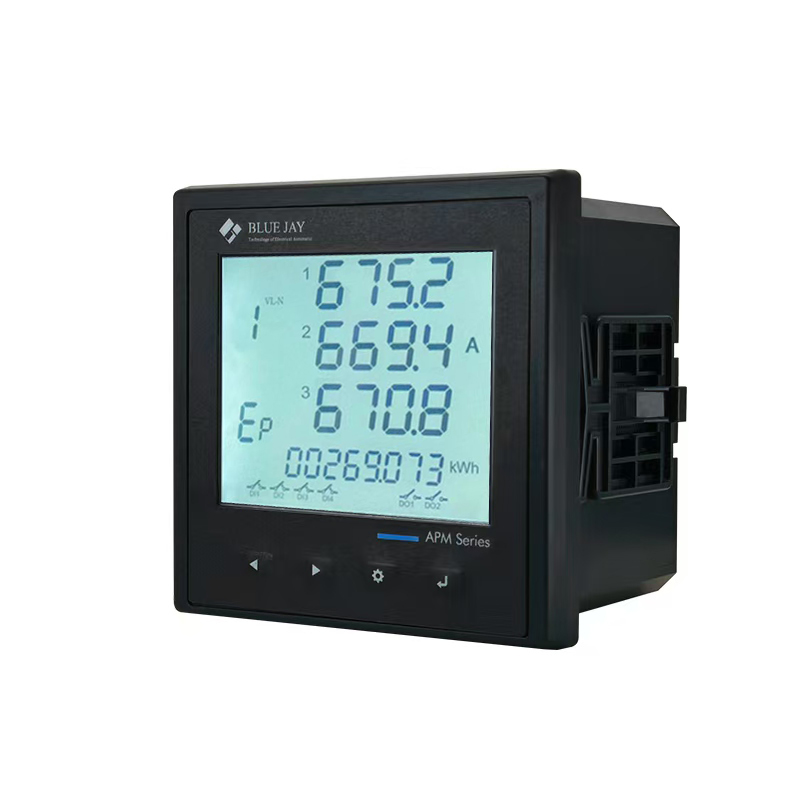

194Y Three-Phase Panel Meter Digital Multifunction For Energy Metering Ethernet RJ45

BJ-194Y Multi-Function Power Meter is a mid-range electrical panel power meter. It is the ideal choice for monitoring and measuring of 3P4W or 3P3W power systems.


With optional expansion modules, it can also transmit the parameter into 2*Relay output (2DO) and 4*Switch input (4DI), 2*Analog output (2AO).


For transformers, generators, capacitor banks and motors of the distributed detection, automatic control system, on-line monitoring display.


Current,

Voltage,

Frequency,

Active power,

Reactive power,

Apparent power,

Energy (Active/Reactive),

Power factor

harmonics 1~15 times,

Voltage harmonics1~15 times,

Voltage and current THD%,

Multi-tariff record(TOU)




Features:

·Measurement accuracy class 0.2

·Current measuring .../5 or .../1 A

·Clear and large matrix LCD screen

·Universal series power supply (85-265VAC/DC)

·ITF Technology: galvanic insulation protection inputs outputs

·Record and read multi- tariffs ratio, Up to 3 months

·Provide 5 virtual alarm trigger

·Provide max 100 lists SOE record

·1KHz Waveform Snapshot, capture length 1 second of voltage, current power flicker/drop for event tracing.

·With RS-485 Modbus/RTU Communications

·Optional 2 channel Analog Output (AO)

·Optional 4 channel Digital Input (DI) and 2 channel Digital Output (DO)
